Trench cutting machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 14, 2020
Grant Date -
Mar 8, 2018
app pub date -
Feb 23, 2016
filing date -
Feb 23, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

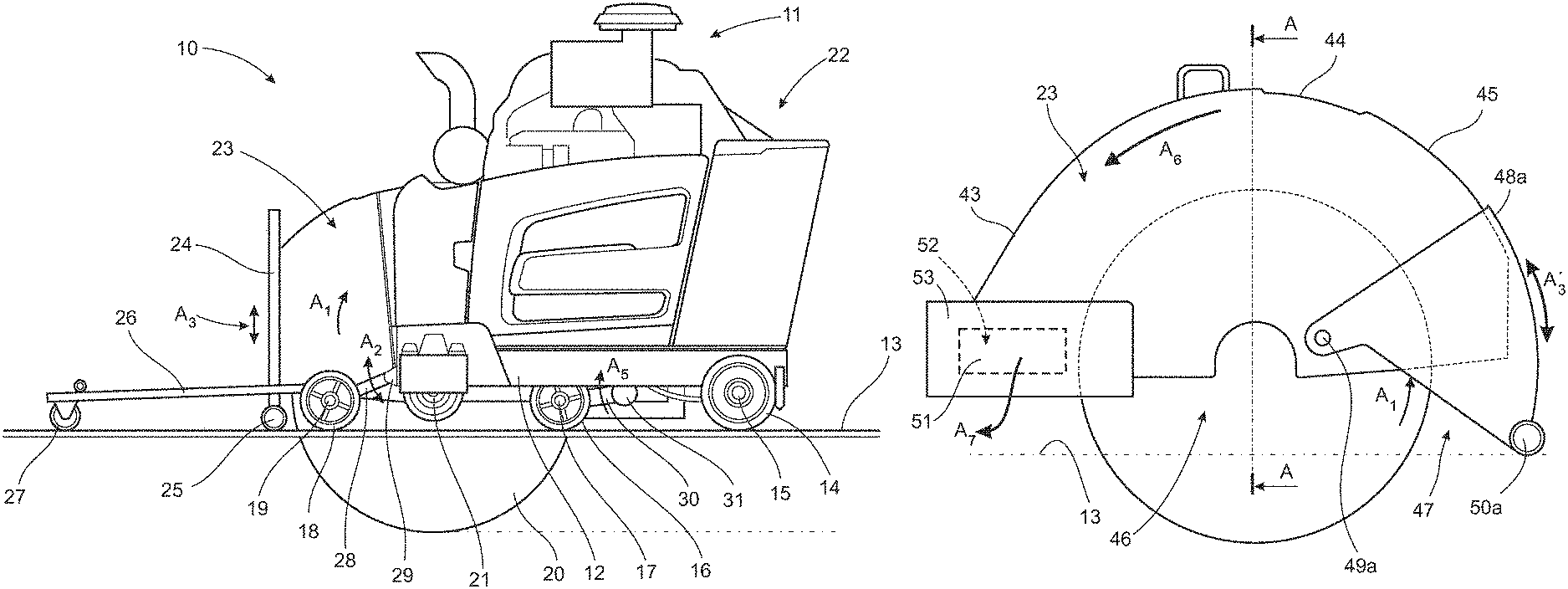

The invention relates to a trench cutting machine (10) for making a cut in a surface (13). The trench cutting machine comprises a frame (12) comprising at least one rear axle (15) and at least one front axle (17); a rotatable circular blade (20) mounted to the frame (12). The front axle (17) is vertically adjustable relative to the frame (12) between a first position where the circular blade (20) is lifted clear of the surface (13), and a second position where the circular blade (20) is arranged to extend downwards from the frame (12) to cut a predetermined distance into the surface (13). The frame (12) comprises an auxiliary front axle (19) located in front of the axis of rotation of the circular blade (20), wherein the auxiliary front axle (19) and the rear axle (15) are arranged to support the frame (12) on the surface (13) during a cutting operation and to maintain a selected depth of cut. The invention further relates to a shroud assembly and a debris guiding device for such a machine.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- H02G Class
- 946 Applications Filed
- 743 Patents Issued To-Date
- 78.55 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H02G Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 14, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 14, 2032 |
