Locking device for a vehicle seat
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Sep 5, 2017
filing date -
Sep 8, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

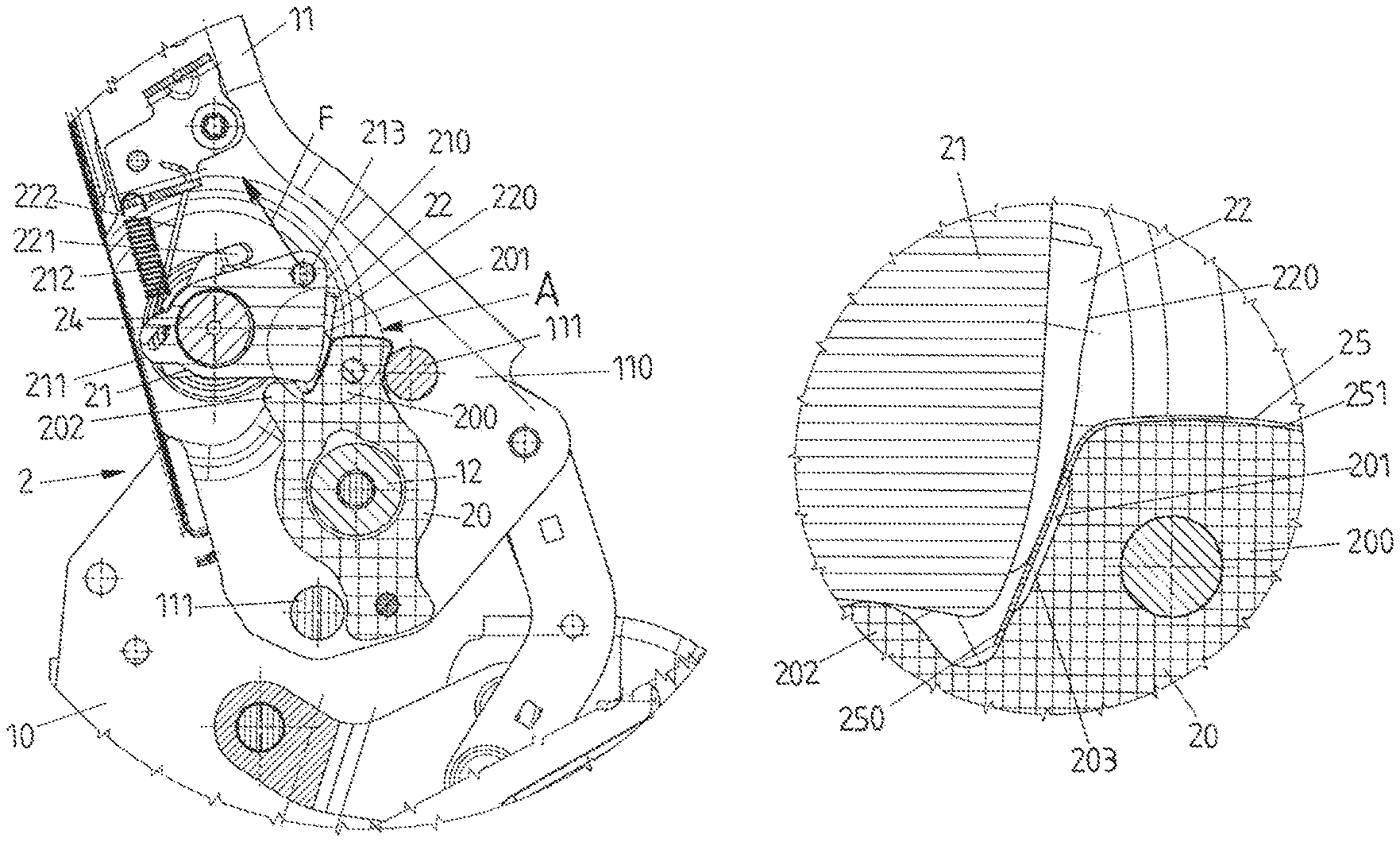

A locking device for locking two assemblies of a vehicle seat together comprises a blocking element which has a supporting surface, and a locking element which is movable with respect to the blocking element, said locking element having an end face and facing the supporting surface of the blocking element with the end face in a locked position of the locking device, wherein the locking device is unlockable by moving the locking element. Additionally provided is a surface element which is applied to the blocking element to at least partially cover the supporting surface or to the locking element to at least partially cover the end face.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- B60N Class
- 1628 Applications Filed
- 1277 Patents Issued To-Date
- 78.44 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60N Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 21, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 21, 2031 |
