Cartridge holder of an injection device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 23, 2021
Grant Date -
Mar 8, 2018
app pub date -
Mar 21, 2016
filing date -
Mar 23, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

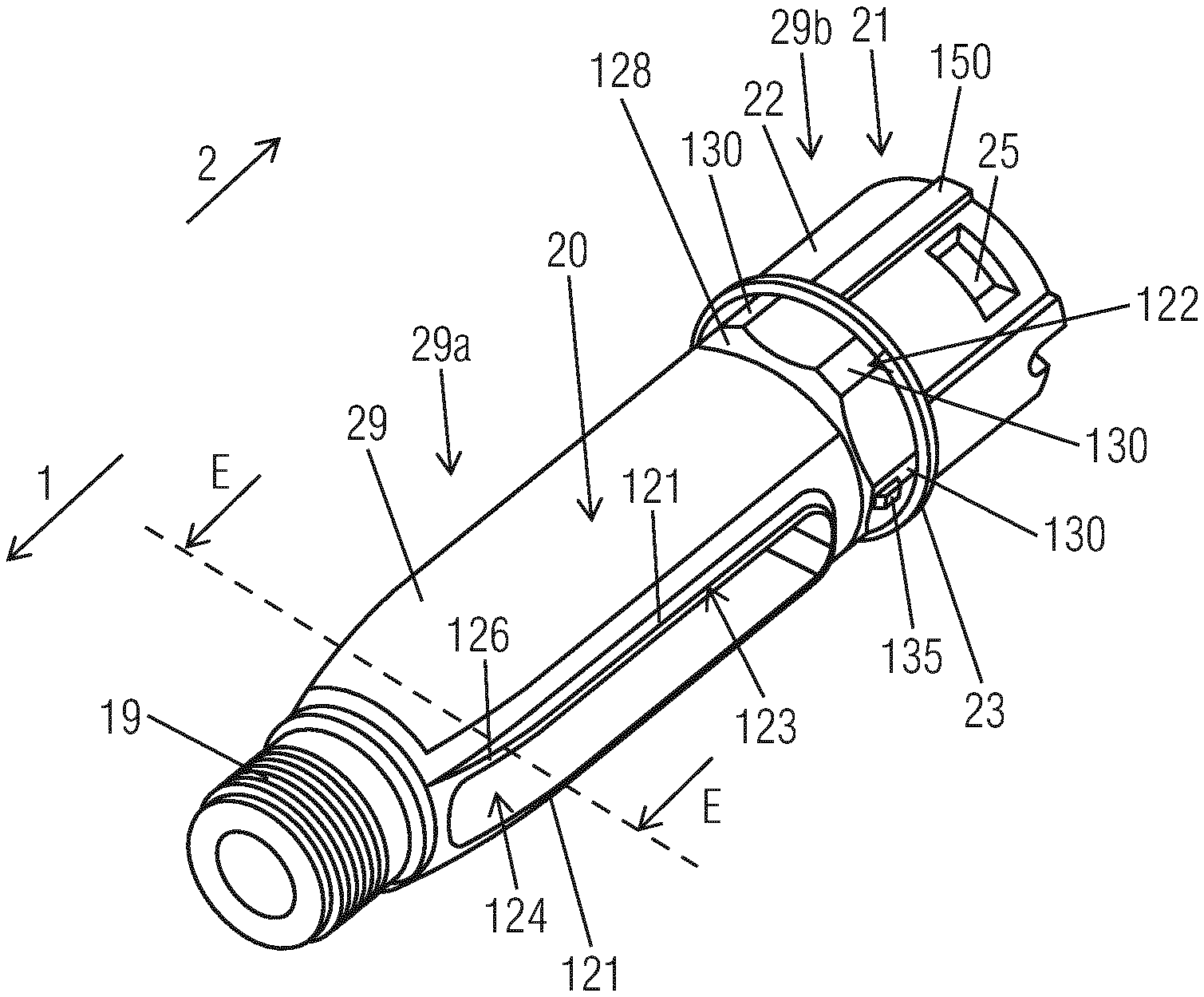

The present disclosure relates to a cartridge holder of an injection device, the cartridge holder comprising a tubular shaped elongated sleeve extending in an axial direction to accommodate a cartridge filled with a medicament, wherein the sleeve (29) comprises:
- a proximal connecting end to connect with a distal connecting end of a body of the injection device, which body is configured to accommodate a drive mechanism of the injection device and which drive mechanism is operably engageable with a piston of the cartridge,a flange section extending radially outwardly from an outside surface of the sleeve and having a proximally facing abutment face to axially abut with a distal end face of the distal connecting end of the body,at least three protrusions located distally from the flange section, extending radially outwardly from the outside surface of the sleeve and being distributed around the circumference of the sleeve.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2016 Application Filing Year
- A61M Class
- 6570 Applications Filed
- 4786 Patents Issued To-Date
- 72.85 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- A61M Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 23, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 23, 2032 |
