Robust spectroscopy systems
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 7, 2020
Grant Date -
Mar 1, 2018
app pub date -
Aug 24, 2016
filing date -
Aug 24, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

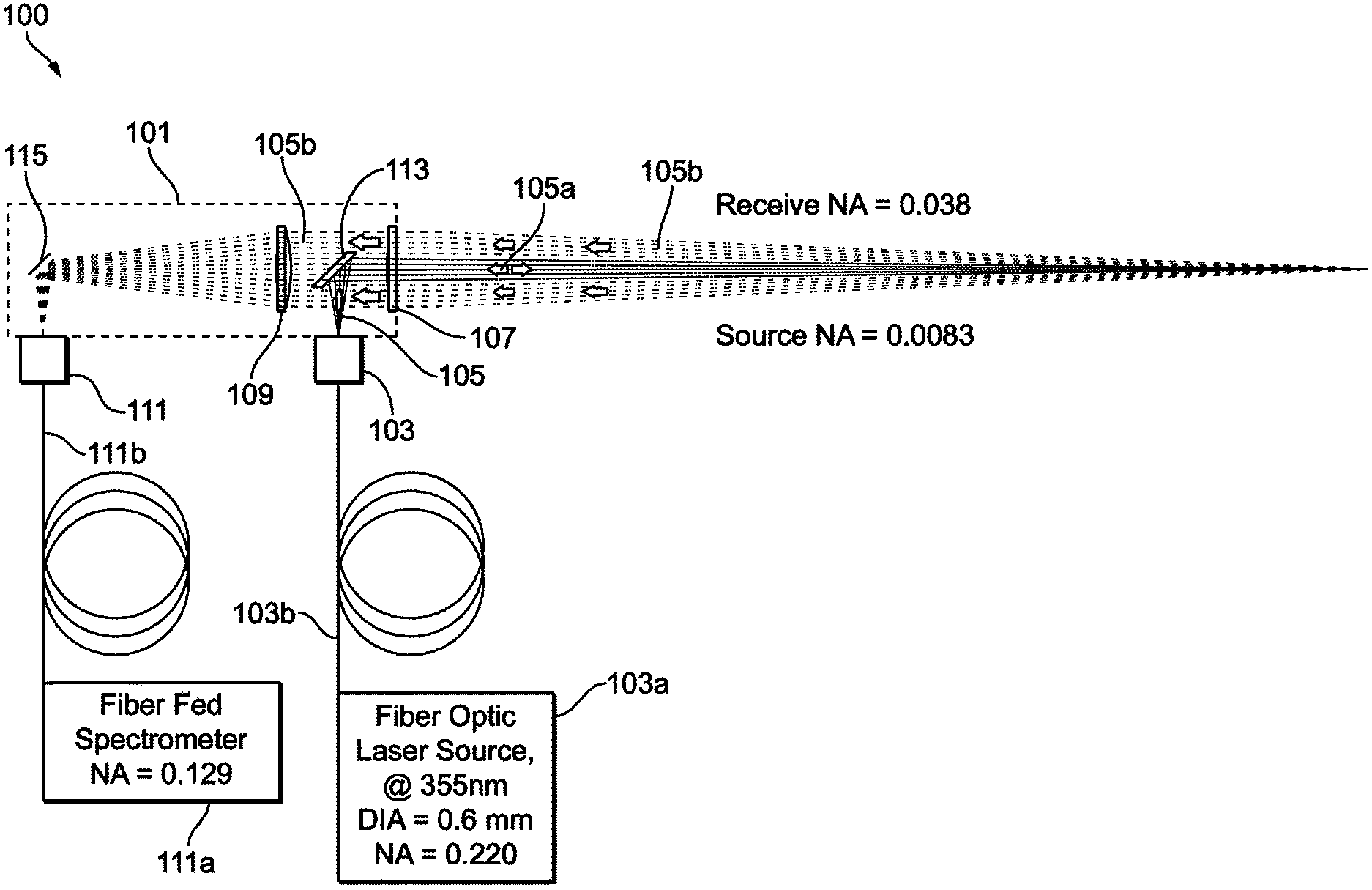

An optical head for a Raman spectroscopy system includes a housing an input configured to allow input radiation of a selected wavelength into the housing, a first lens disposed in an end of the housing to allow the input radiation to emit from the housing through the first lens and to receive reflected radiation including specular reflection and diffuse reflection, and a second lens disposed in the housing and configured to receive reflected radiation from the first lens. The optical head includes an output configured to receive the reflected radiation from the second lens. The optical head includes a blocking mirror disposed in the housing between the first lens and the second lens. The blocking mirror is configured and positioned to direct the radiation from the input to the first lens. The blocking mirror blocks at least a portion of specular reflection from reaching the second lens but allows diffuse reflection to the reach the second lens.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2016 Application Filing Year
- G01J Class
- 1559 Applications Filed
- 1274 Patents Issued To-Date
- 81.72 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01J Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 7, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 7, 2032 |
