Steering control device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 30, 2020
Grant Date -
Mar 1, 2018
app pub date -
Aug 11, 2017
filing date -
Aug 26, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

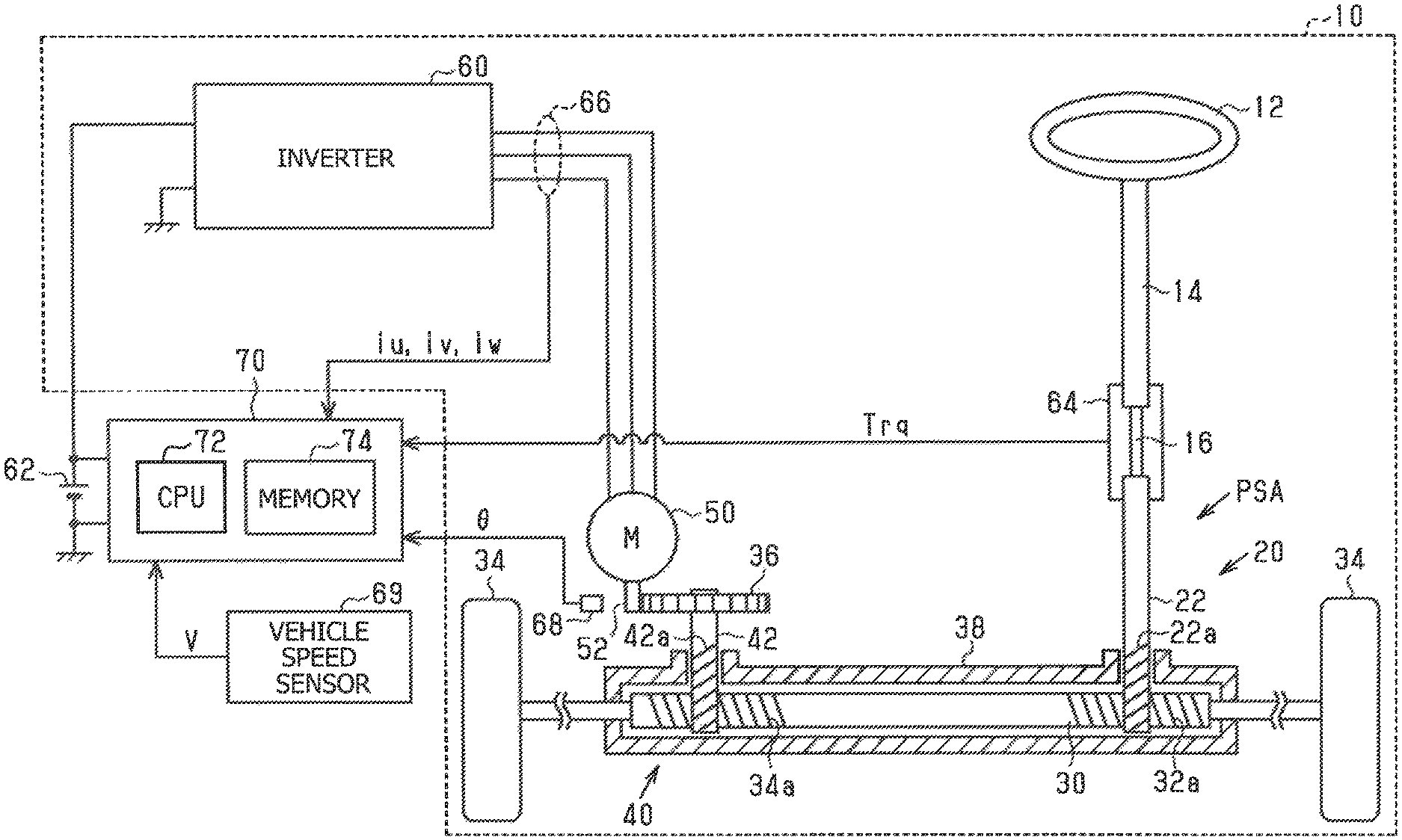

A steering control device includes a command value setting processing portion configured to set a current command value based on a detection value of steering torque; a feedback processing portion configured to control a voltage applied to a motor so as to control a current flowing through the motor to the current command value, based on an output value of an integral element obtained by using a difference between the current and the current command value; an end determination processing portion configured to determine whether a turning angle of steered wheels has reached a limit angle; and an end-time limit processing portion configured to perform correction to increase a magnitude of the difference, based on a degree of a decrease in a magnitude of a rotational speed of the motor when the end determination processing portion determines that the turning angle has reached the limit angle.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- G01L Class
- 1437 Applications Filed
- 1063 Patents Issued To-Date
- 73.98 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01L Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 30, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 30, 2031 |
