Solder processing device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 6, 2020
Grant Date -
Mar 1, 2018
app pub date -
Mar 15, 2016
filing date -
Mar 16, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

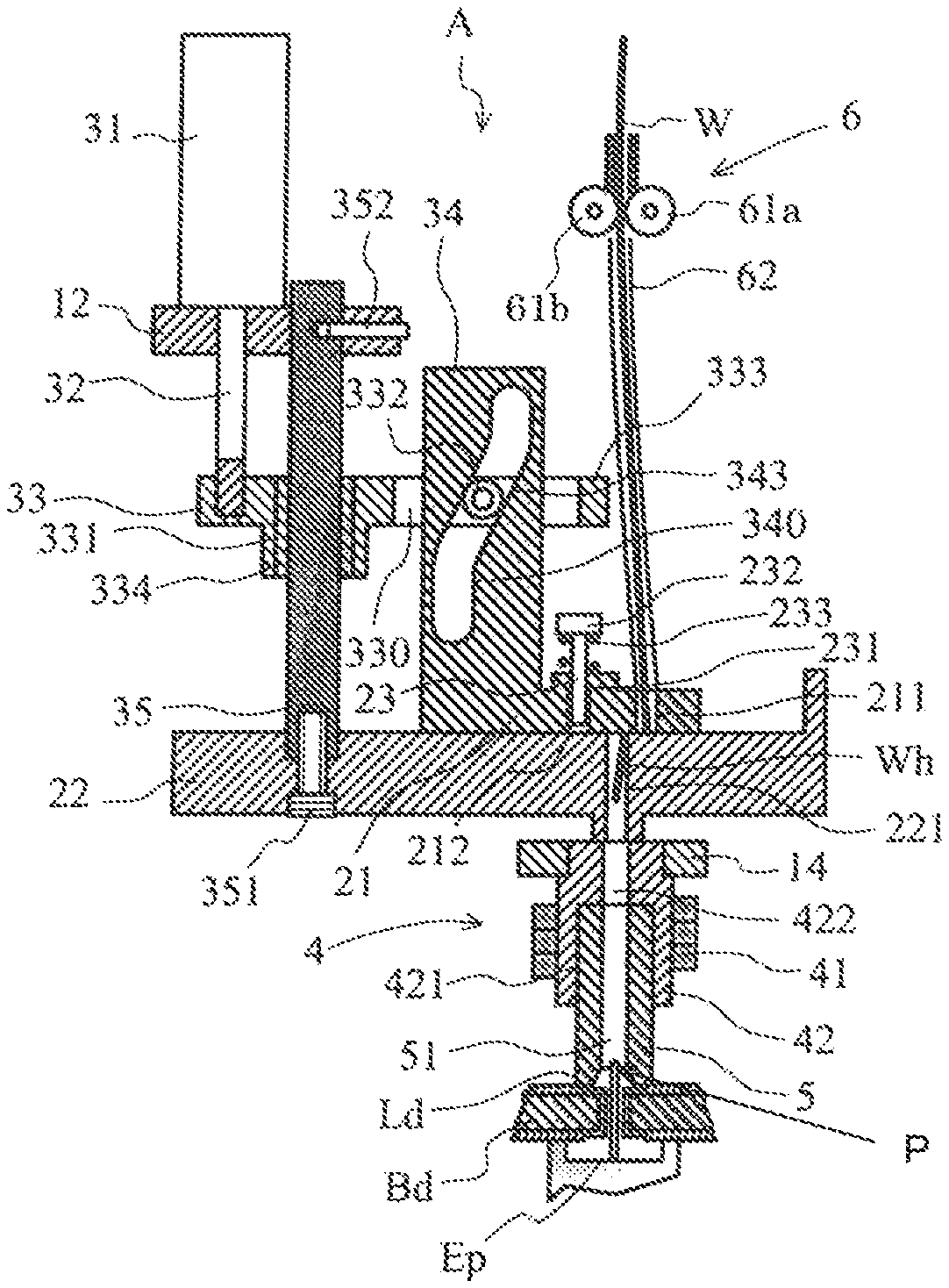

A substantially tubular iron tip (5) that can be heated and that is extended vertically and a solder piece supply portion that supplies a first solder piece (Wh1) and a second solder piece (Wh2) in which a layer of a flux (72) is provided within a tubular solder layer in this order from above into the iron tip are provided, within the iron tip, the solder pieces are erected such that on the first solder piece, the second solder piece rides and the heat of the iron tip is used to melt the first solder piece and the second solder piece such that the molten solder is supplied downward. In this way, it is possible to more reliably heat and melt the solder pieces in a posture in which they are erected within the iron tip.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- B23K Class
- 2440 Applications Filed
- 1724 Patents Issued To-Date
- 70.66 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B23K Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 6, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 6, 2032 |
