KEYBOARD DEVICE AND SCISSORS CONNECTING MEMBER THEREOF
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Oct 21, 2016
filing date -
Aug 19, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

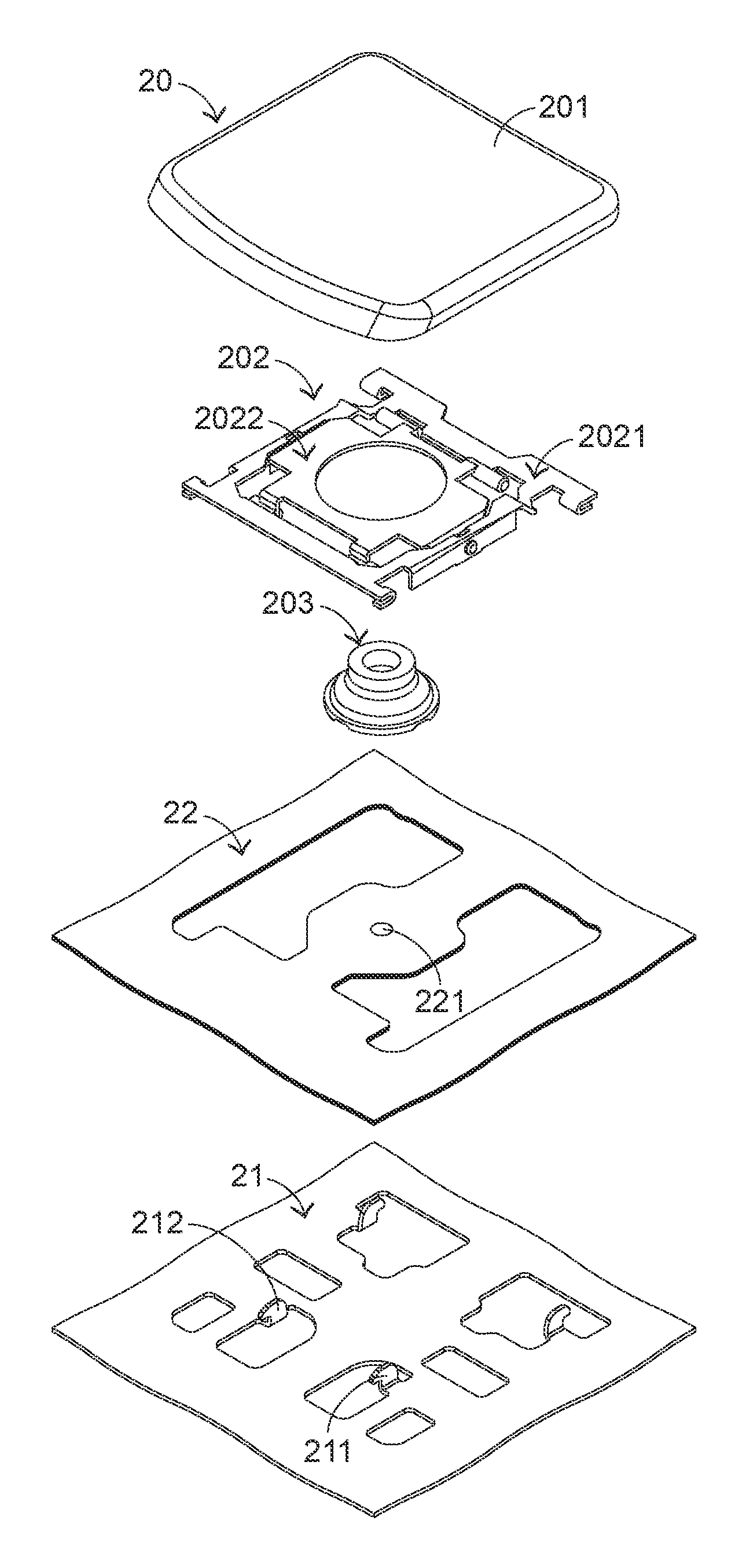

A keyboard device is provided. The keyboard device includes a button bottom plate, buttons, and a thin-film circuit board disposed between the button bottom plate and the buttons. The button includes a button cap and a scissors connecting member connected between the button bottom plate and the button cap. The scissors connecting member includes an outer frame and an inner frame. The inner frame includes a frame body and a rotating shaft that is connected to the frame body and extends out of the frame body. The inner frame is pivotally connected to the outer frame by means of the rotating shaft, and the rotating shaft and the frame body are made of different materials, respectively.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H01H Class
- 26.63 % this patent is cited more than
- 7 Age
