Steering support member structure
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 14, 2020
Grant Date -
Feb 22, 2018
app pub date -
Mar 18, 2016
filing date -
Mar 26, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

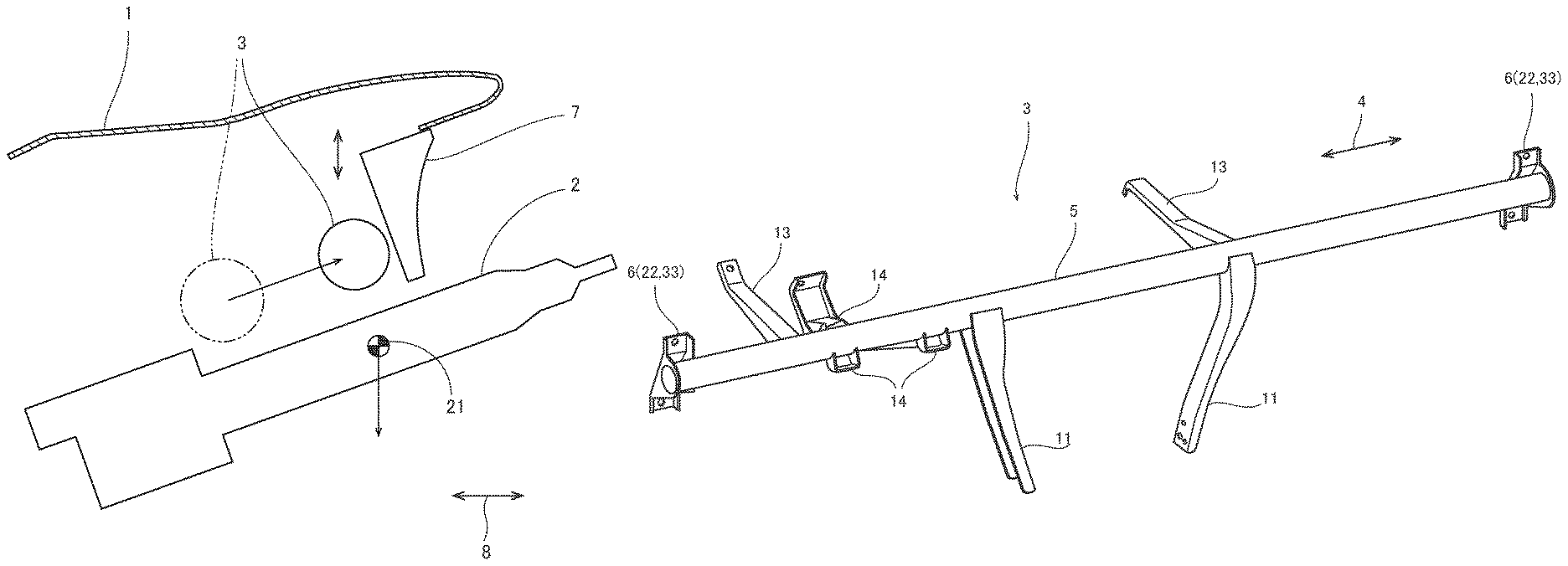

The steering support member is disposed in a front portion of a vehicle cabin to support the steering column. The steering support member includes a steering support member body that extends in a vehicle width direction, and side brackets that fix both ends of the steering support member body to a vehicle body. The steering support member body is disposed above a gravity center position of the steering column to fix the gravity center position or a position in a vicinity of the gravity center position. At least the side bracket closer to the steering column includes a front-and-rear fixing portion that fixes the steering support member to the vehicle body in a vehicle front-and-rear direction.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B62D Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 14, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 14, 2031 |
