Power steering system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 9, 2021
Grant Date -
Feb 22, 2018
app pub date -
Oct 27, 2017
filing date -
Feb 6, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

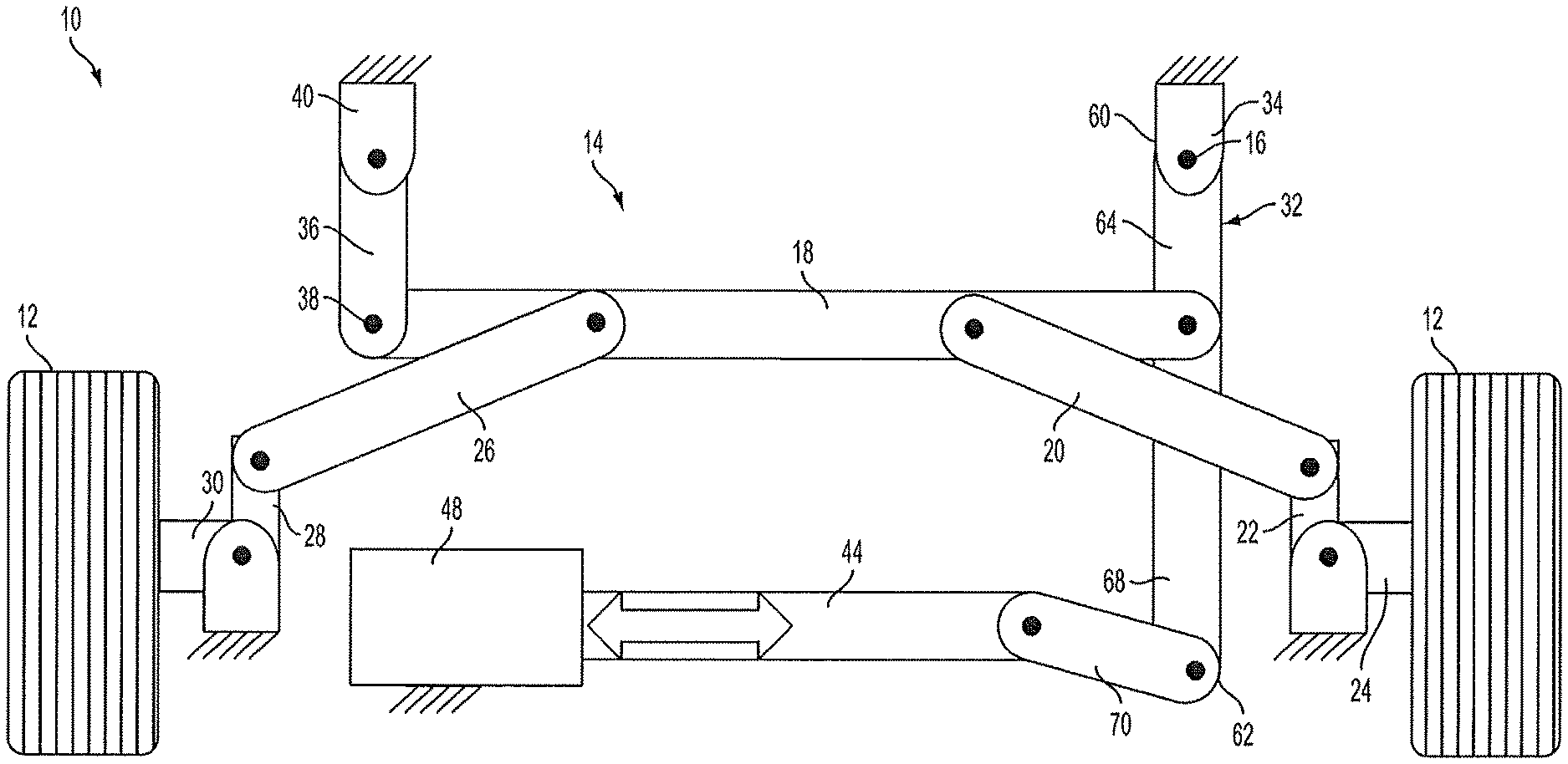

A power steering system including a first linkage arm pivotally coupled to a cross-link member extending in a transverse direction. Also included is a first shaft generally orthogonal to the first linkage arm, the first shaft configured to rotate the first linkage arm. Further included is a power portion of the first linkage arm extending from a first end of the first linkage arm to the first shaft. Yet further included is an assist portion of the first linkage arm extending from the first shaft to a second end of the first linkage arm. Also included is an electric actuator. Further included is a linkage member extending from the electric actuator and operatively coupled to the assist portion of the first linkage arm.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- B62D Class
- 3233 Applications Filed
- 2520 Patents Issued To-Date
- 77.95 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B62D Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 9, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 9, 2032 |
