Articulating and expandable vertebral implant
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 24, 2020
Grant Date -
Feb 22, 2018
app pub date -
Sep 1, 2017
filing date -
Feb 15, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

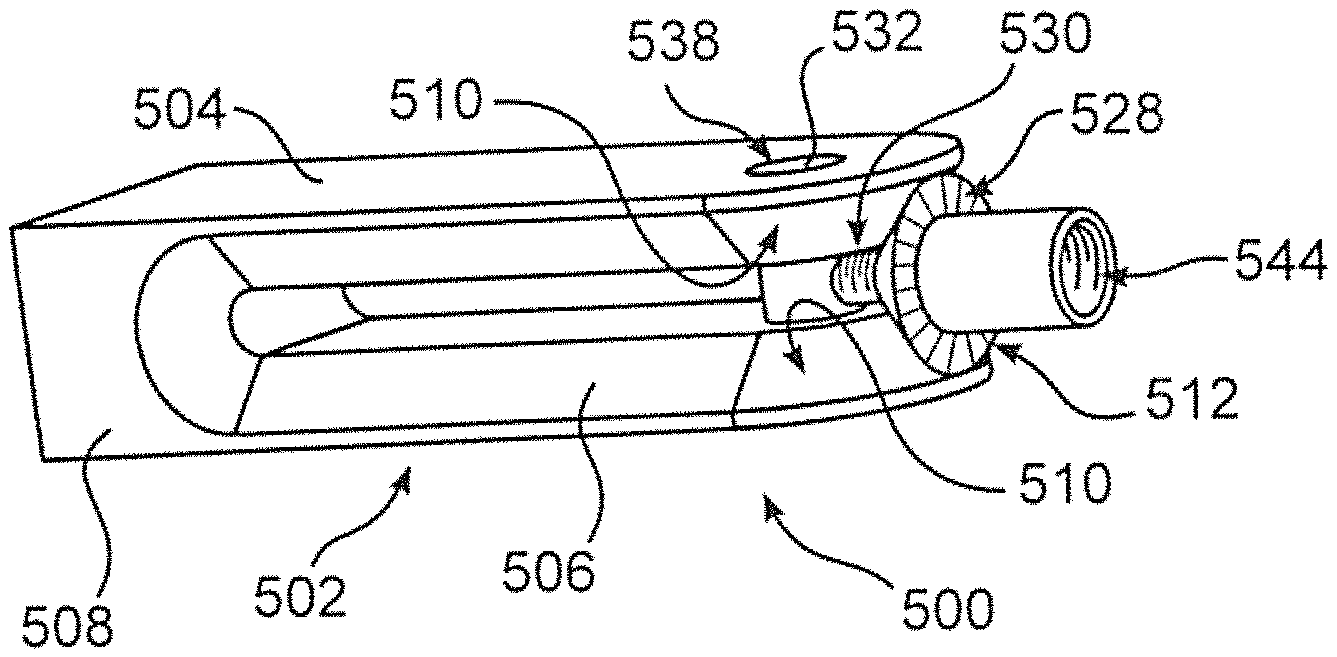

An implant is insertable in the joint space to separate bones of the joint. The implant has two endplates each configured to engage a separate articulating bone of the joint, and a threaded member positioned between the two endplates and configured to increase the space between the two endplates when the threaded member is rotated. A rotatable gear is engaged with the threaded member, and is engageable with a rotating gear of a connected implantation tool, so that rotation of the gear on the tool causes rotation of the threaded member and expansion of the implant to separate the bones. Connector portions on the tool and the implant may be rotated together to securely engage the implant and the tool so that the gears of the tool and the implant can be rotated using an actuator outside of the body, when the implant is inside the body.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 22 Citation Count
- A61F Class
- 95.46 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 24, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 24, 2032 |
