Germanium-on-silicon laser in CMOS technology

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 10686297
APP PUB NO 20180048123A1
SERIAL NO

15555639

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

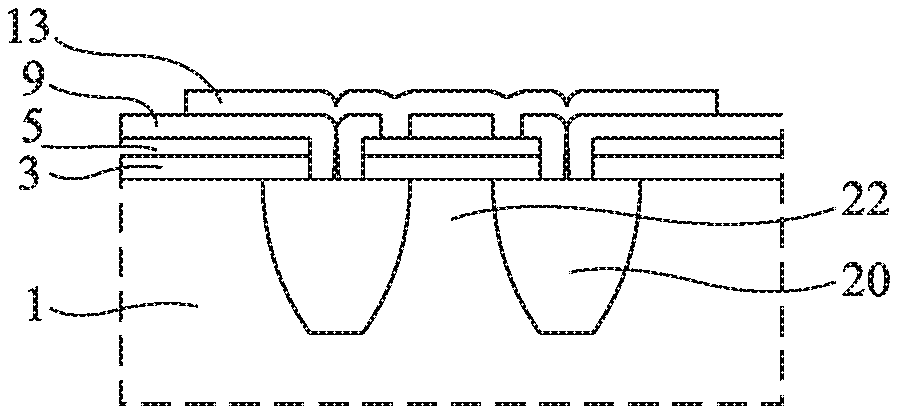

A germanium waveguide is formed from a P-type silicon substrate that is coated with a heavily-doped N-type germanium layer and a first N-type doped silicon layer. Trenches are etched into the silicon substrate to form a stack of a substrate strip, a germanium strip, and a first silicon strip. This structure is then coated with a silicon nitride layer.
