Thermoacoustic cooling device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 20, 2020
Grant Date -
Feb 15, 2018
app pub date -
Aug 8, 2017
filing date -
Aug 9, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

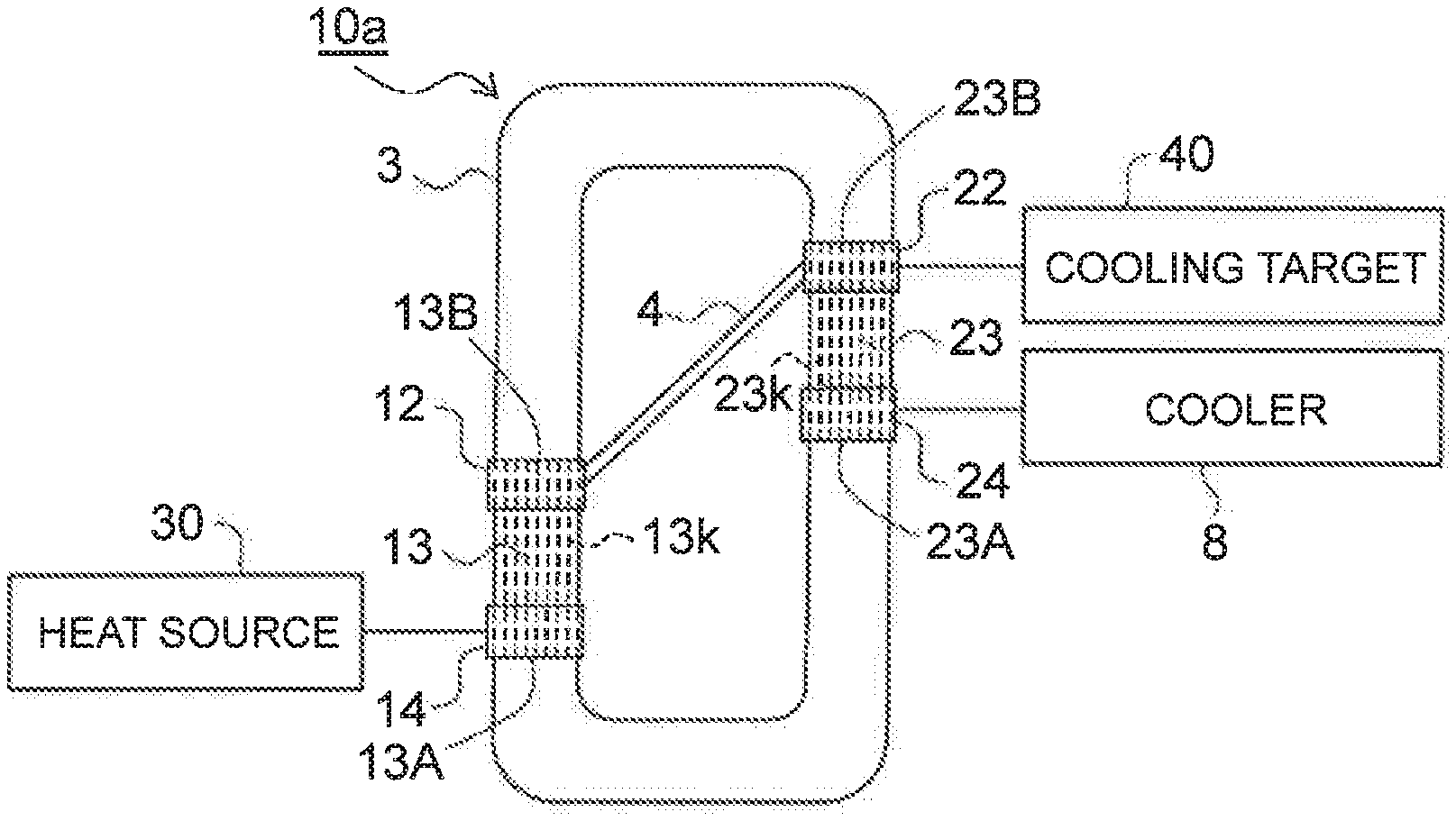

A thermoacoustic cooling device includes a tube in which a working fluid is enclosed; a first stack that generates acoustic waves in the working fluid with use of a temperature gradient; a first high-temperature heat exchanger provided at a first side of the first stack to heat the first side of the first stack; a first low-temperature heat exchanger provided at a second side of the first stack; a second stack in which a temperature gradient is generated by the acoustic waves; a second high-temperature heat exchanger provided at a first side of the second stack, which has a high temperature; a second low-temperature heat exchanger provided at a second side of the second stack, which has a low temperature; and a heat transfer portion configured to connect the second low-temperature heat exchanger to the first low-temperature heat exchanger so as to transfer heat therebetween.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- F25B Class
- 1295 Applications Filed
- 923 Patents Issued To-Date
- 71.28 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F25B Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 20, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 20, 2032 |
