Seal device for turbine, turbine, and thin plate for seal device

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 10662796
APP PUB NO 20180045065A1
SERIAL NO

15550891

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

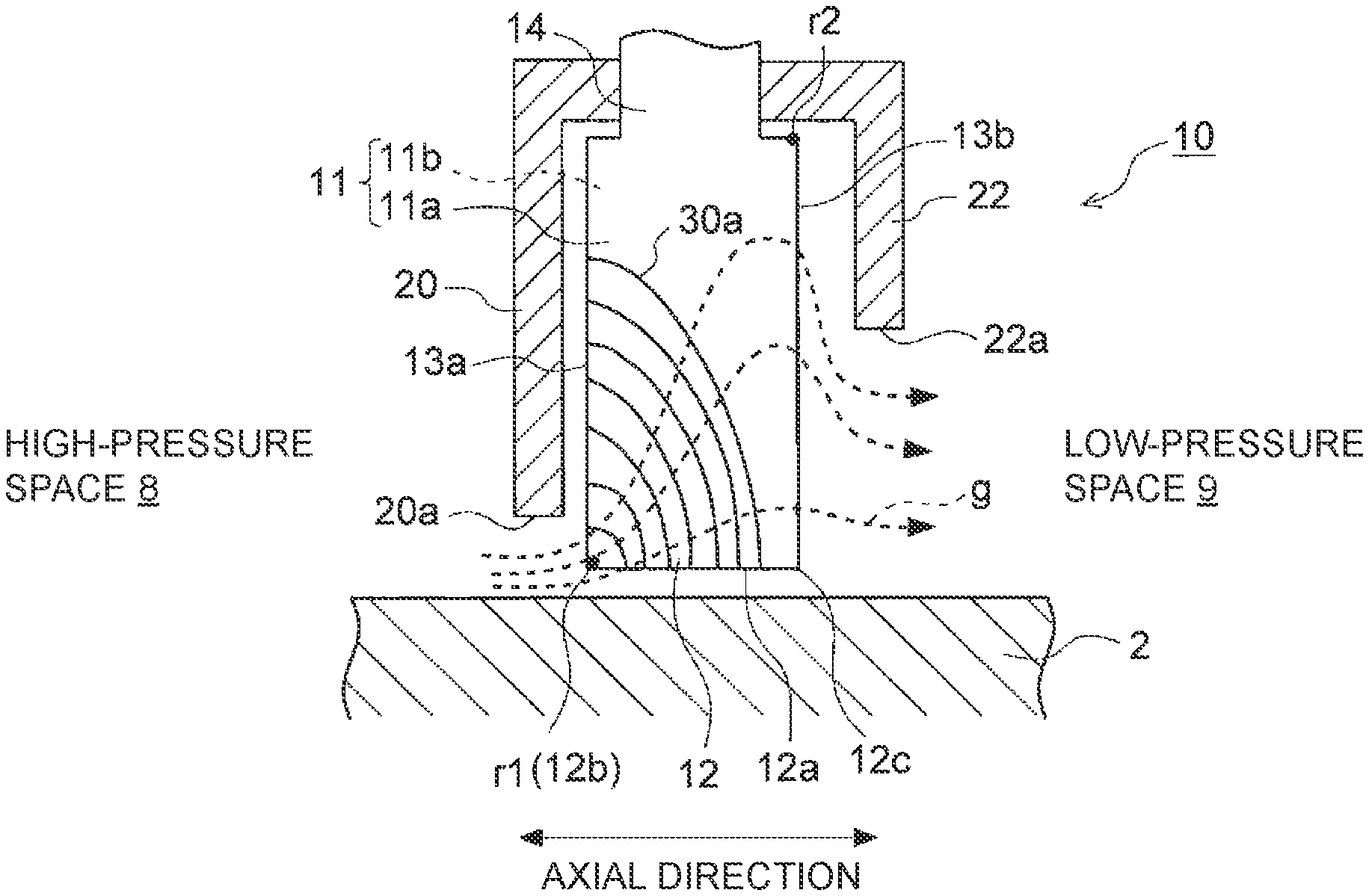

A seal device for a turbine includes: a plurality of thin plates arranged along an outer peripheral surface of the rotor, each of the thin plates including a root portion disposed on an outer side in a radial direction of the rotor and supported on a stationary part of the turbine and a tip portion disposed on an inner side in the radial direction of the rotor and having a tip surface facing the outer peripheral surface of the rotor. Each of the thin plates is configured such that a width direction of the thin plate is parallel to an axial direction of the rotor at a side of the root portion, and the tip portion of each of the thin plates is configured such that an end on a side of the high-pressure space is positioned downstream of another end on a side of the low-pressure side.
