ROLLING DOOR CONSTRUCTION FOR CONTROLLING AIR LEAKAGE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 15, 2018
app pub date -
Jun 22, 2017
filing date -
Aug 12, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

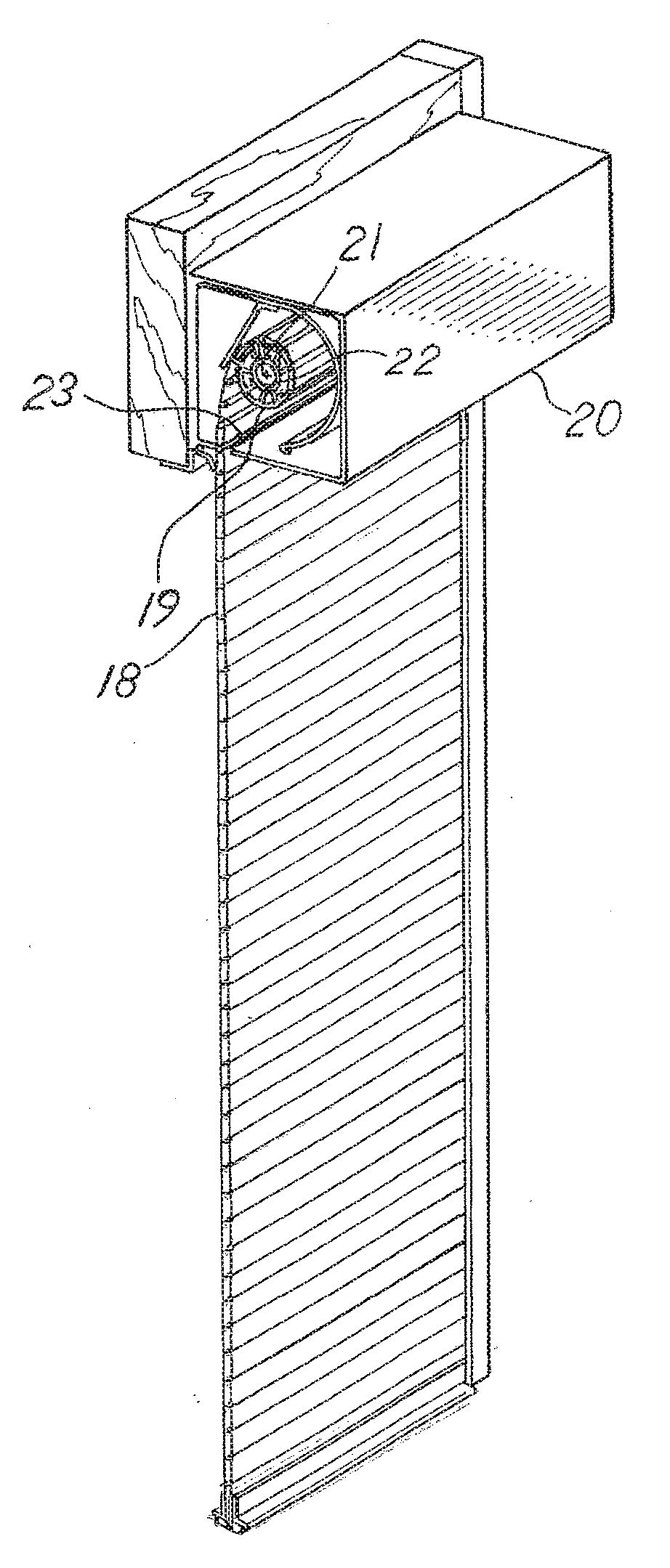

An overhead, rolling door includes a peripheral seal construction that restricts air flow heat transfer through the periphery of a door opening. The door comprises a flexible curtain mounted on an overhead drum located above the door opening. The curtain may be unwound from the drum and lowered to close the door opening and engages the seal to preclude air flow energy loss through the door opening. The seal is comprised of unitary, elastomeric, elongate, flexible blades mounted on brackets positioned around the periphery of the door opening. The blades function as flexible cantilever mounted seals with an outer end that fits tightly against the surface of the closed door to form an uninterrupted seal of the closed door opening.
First Claim
Other Claims data not available
