DETECTION DEVICE AND DETECTION CONTROL METHOD
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Aug 8, 2017
filing date -
Aug 10, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

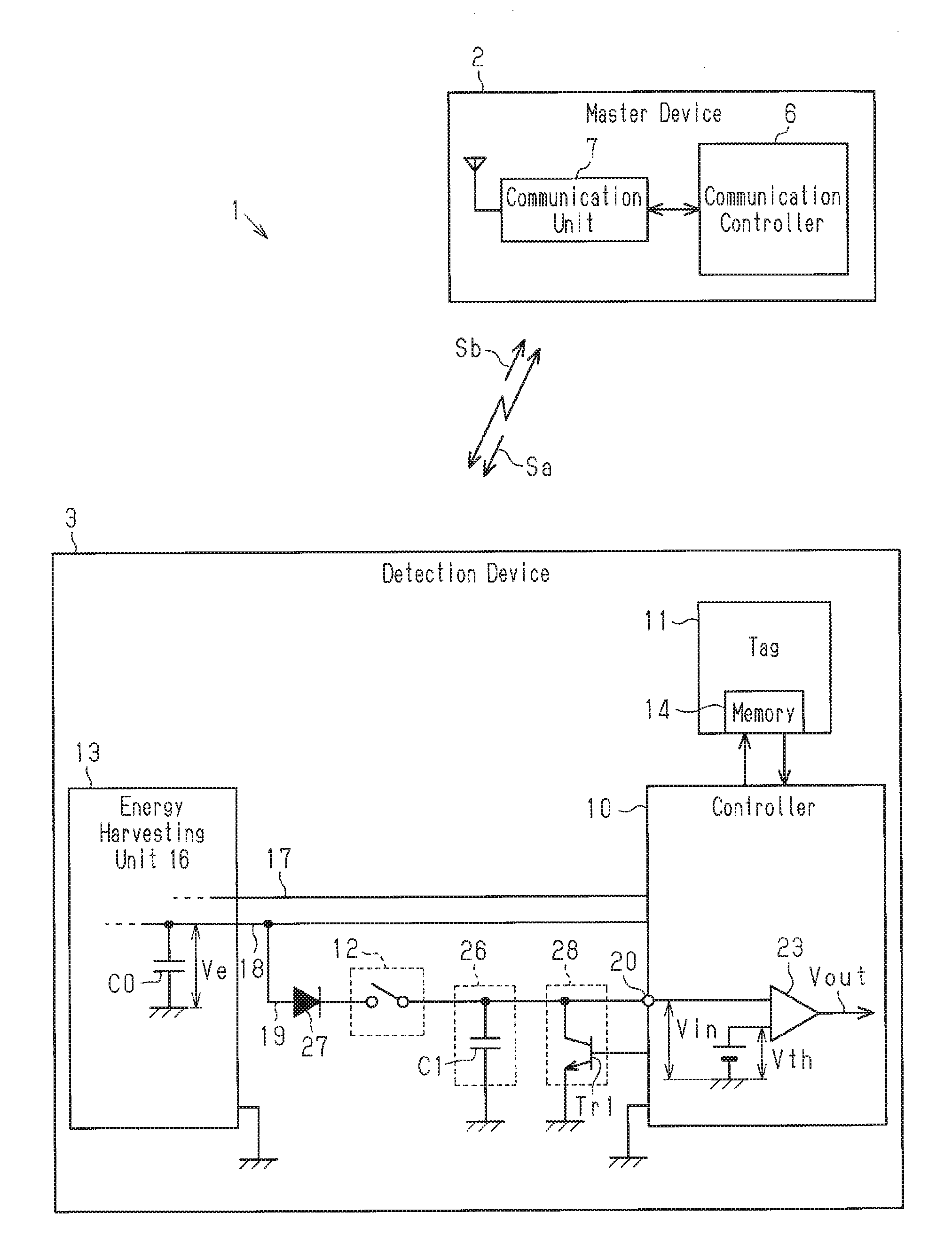

A detection device for use with a master device is provided. The detection device includes an electric power source that is intermittently driven to generate electric power, a detector switched between a number of states by occurrence of a predetermined event or a predetermined state, an electric power accumulator that is charged or discharged by switching the state of the detector, and a controller powered by the electric power source. The controller is configured to determine the state of the detector and notify the master device of detection information corresponding to the state of the detector. Activation of the controller powered by the electric power source is followed by acknowledgment of the state of the detector by the controller based on a state of the electric power accumulator.
First Claim
Other Claims data not available
