ROBOT, METHOD OF CONTROLLING THE ROBOT, AND METHOD OF ASSEMBLING WORKPIECE, AND METHOD OF CONVEYING WORKPIECE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Mar 4, 2016
filing date -
Mar 13, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

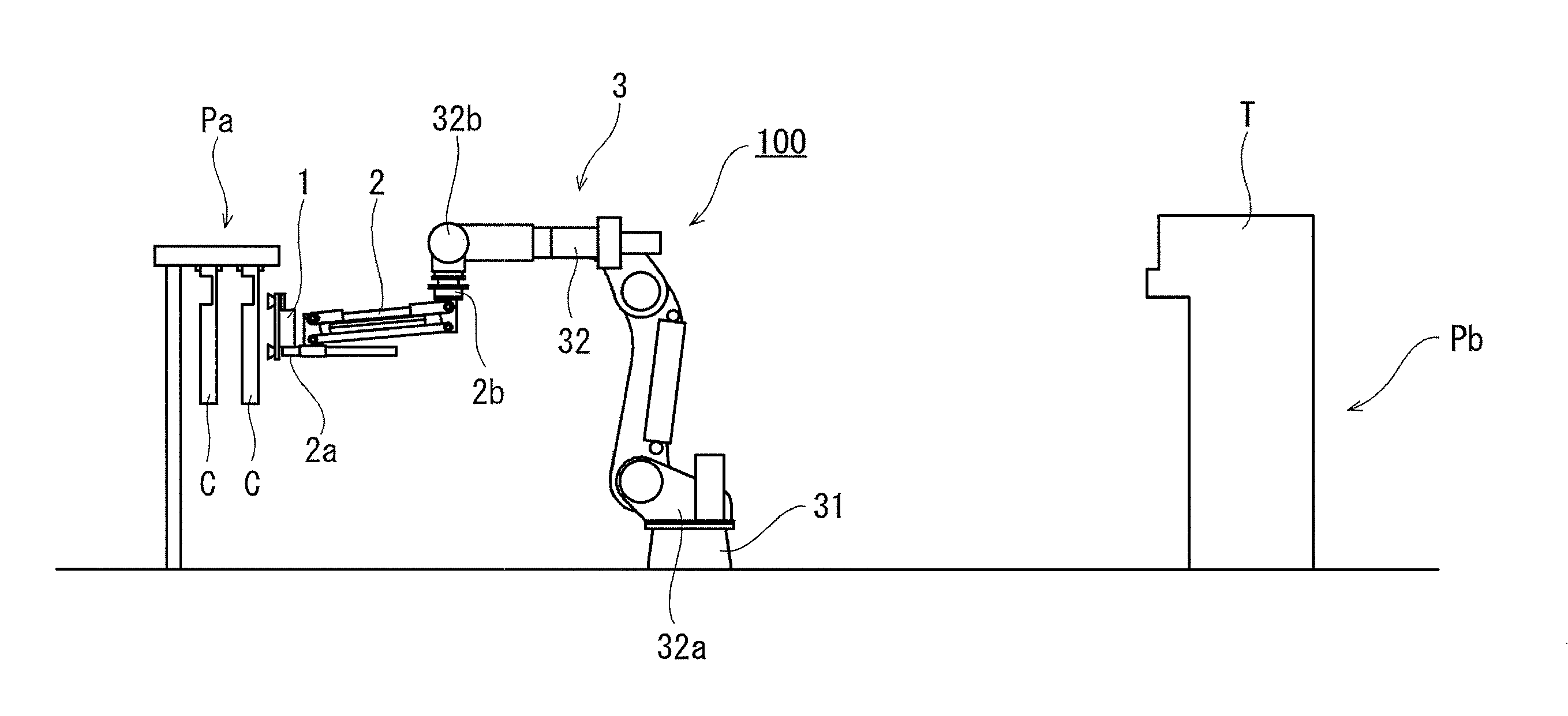

A robot is provided, includes a hand configured to hold a workpiece, a floating unit having a tip-end part and a base-end part and having a joint configured to operate within a given operating range, the hand being attached to the tip-end part, and the tip-end part being movable with the base-end part, a robot arm is attached to the base-end part of the floating unit and configured to move the hand and the floating unit, and a control device having a robot arm controller configured to control operation of the robot arm. The robot arm controller moves the hand and the floating unit so that the hand is located at a temporary target position. The temporary target position is the hand movable to a target position by moving the tip-end part of the floating unit with the base-end part thereof, the tip-end part located at the temporary target position.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G05B Class
- 24.54 % this patent is cited more than
- 7 Age
