ELECTRICAL CONNECTOR
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 8, 2018
app pub date -
Aug 3, 2017
filing date -
Aug 3, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

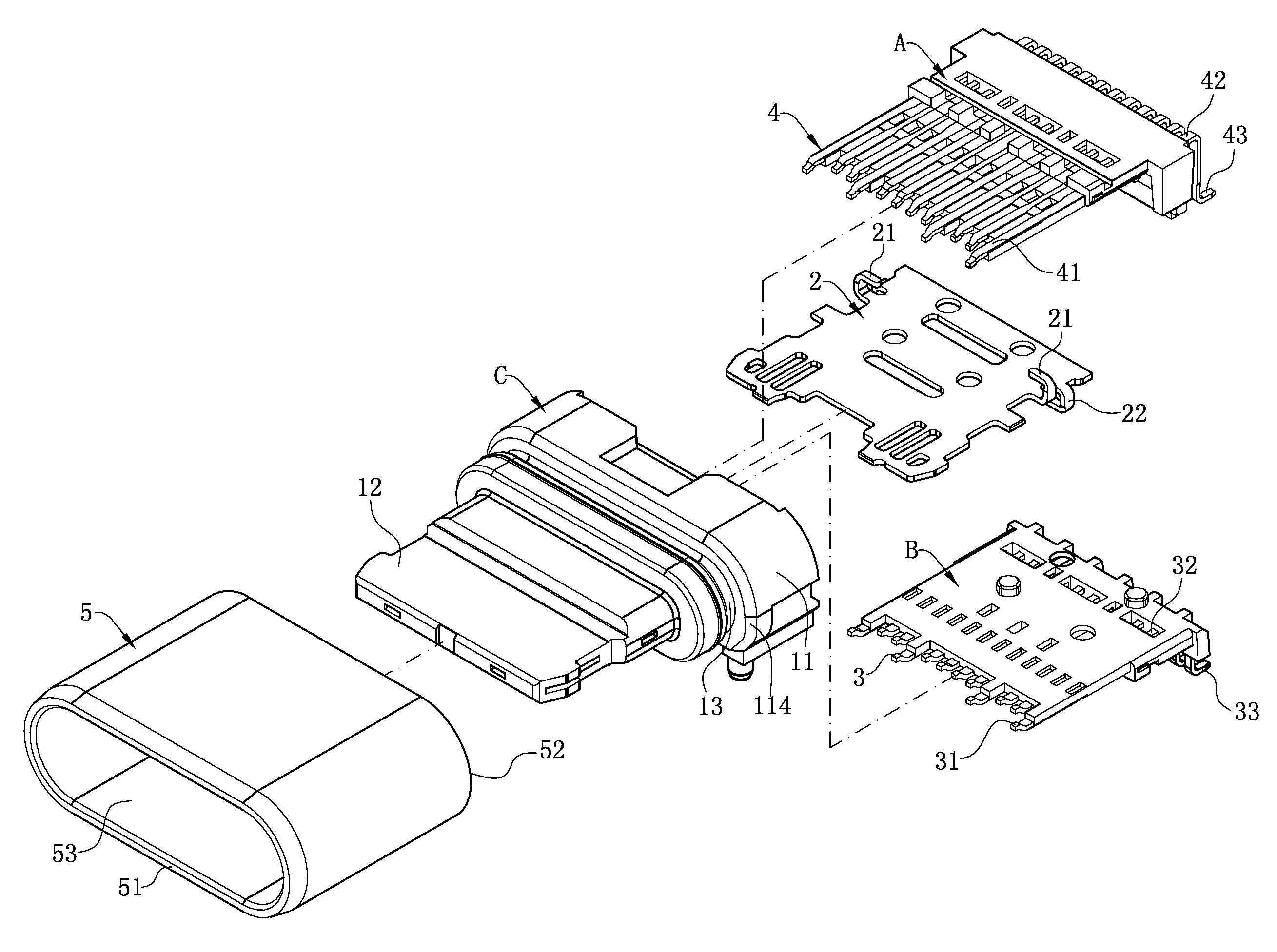

An electrical connector, including an insulating body, which is concavely provided with a first filling groove communicating with a groove, and a second filling groove spaced from the first filling groove. Each first terminal has a first connecting portion located partially in the first filling groove, and each second terminal has a second connecting portion located partially in the second filling groove. A metal shell wraps a periphery of the insulating body, and the groove is located between the insulating body and the metal shell. A first sealing member is filled in the first filling groove and extends to fill in the groove. A second sealing member is filled in the second filling groove.
First Claim
Other Claims data not available
