SHIFT REGISTERS AND DRIVING METHODS THEREOF, GATE DRIVING APPARATUS AND DISPLAY APPARATUSES
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jul 12, 2017
filing date -
Aug 4, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

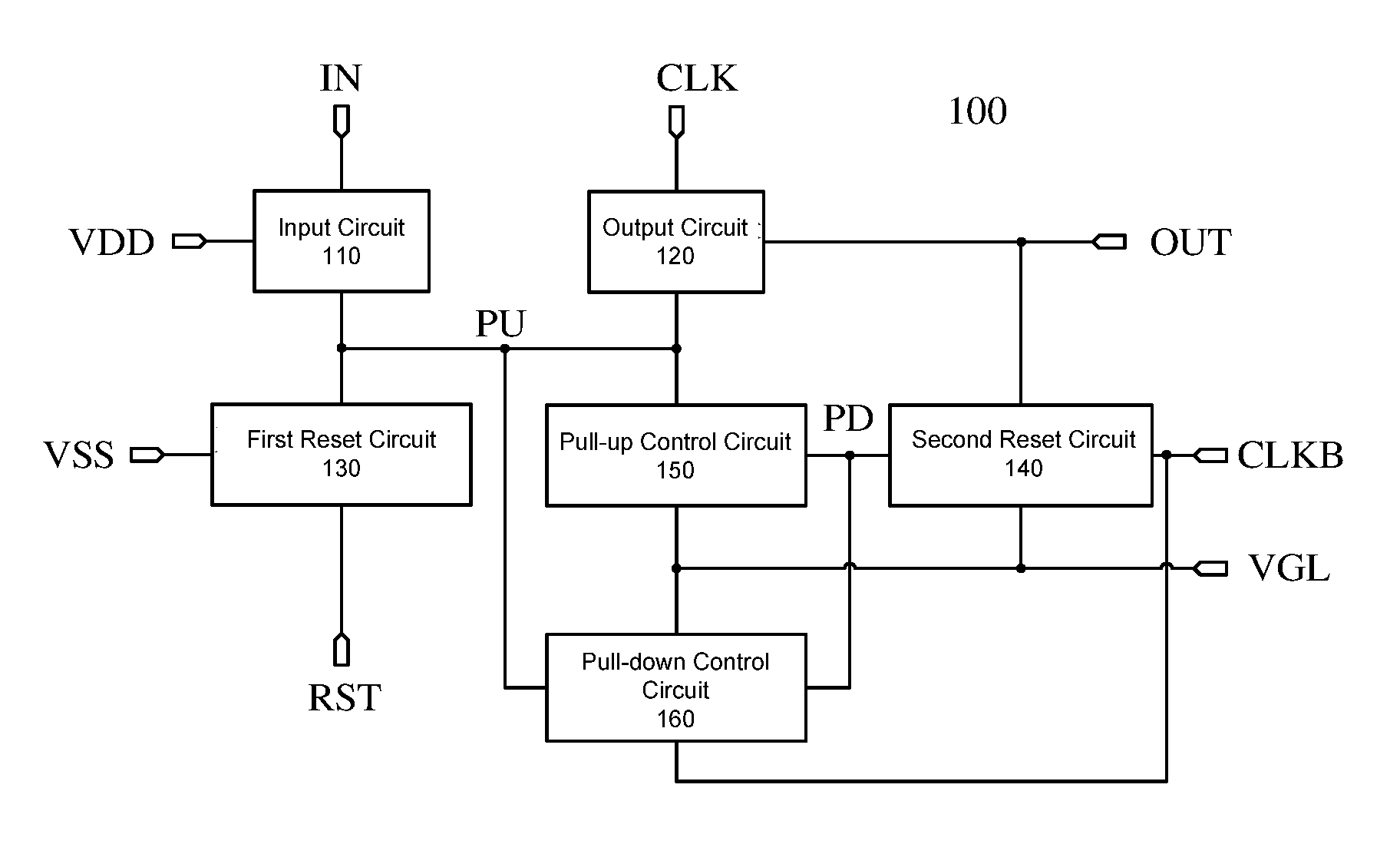

Embodiments of the present disclosure disclose a shift register. The shift register comprises an input circuit configured to control a voltage of a first node, an output circuit configured to control an output signal of a signal output terminal, a first reset circuit configured to reset the voltage of the first node, a second reset circuit configured to reset the output signal, a pull-up control circuit configured to control the voltage of the first node according to the voltage of the second node, and a pull-down control circuit configured to control the voltage of the second node according to the voltage of the first node and control the voltage of the second node to be an effective voltage in response to the voltage of the first node being a non-effective voltage. Further, a gate driving apparatus, an array substrate, and a display apparatus are also proposed.
