APPARATUS AND METHOD FOR INSPECTING TEMPLATE BY USING SIMPLIFIED HOUGH TRANSFORM
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jul 24, 2017
filing date -
Aug 3, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

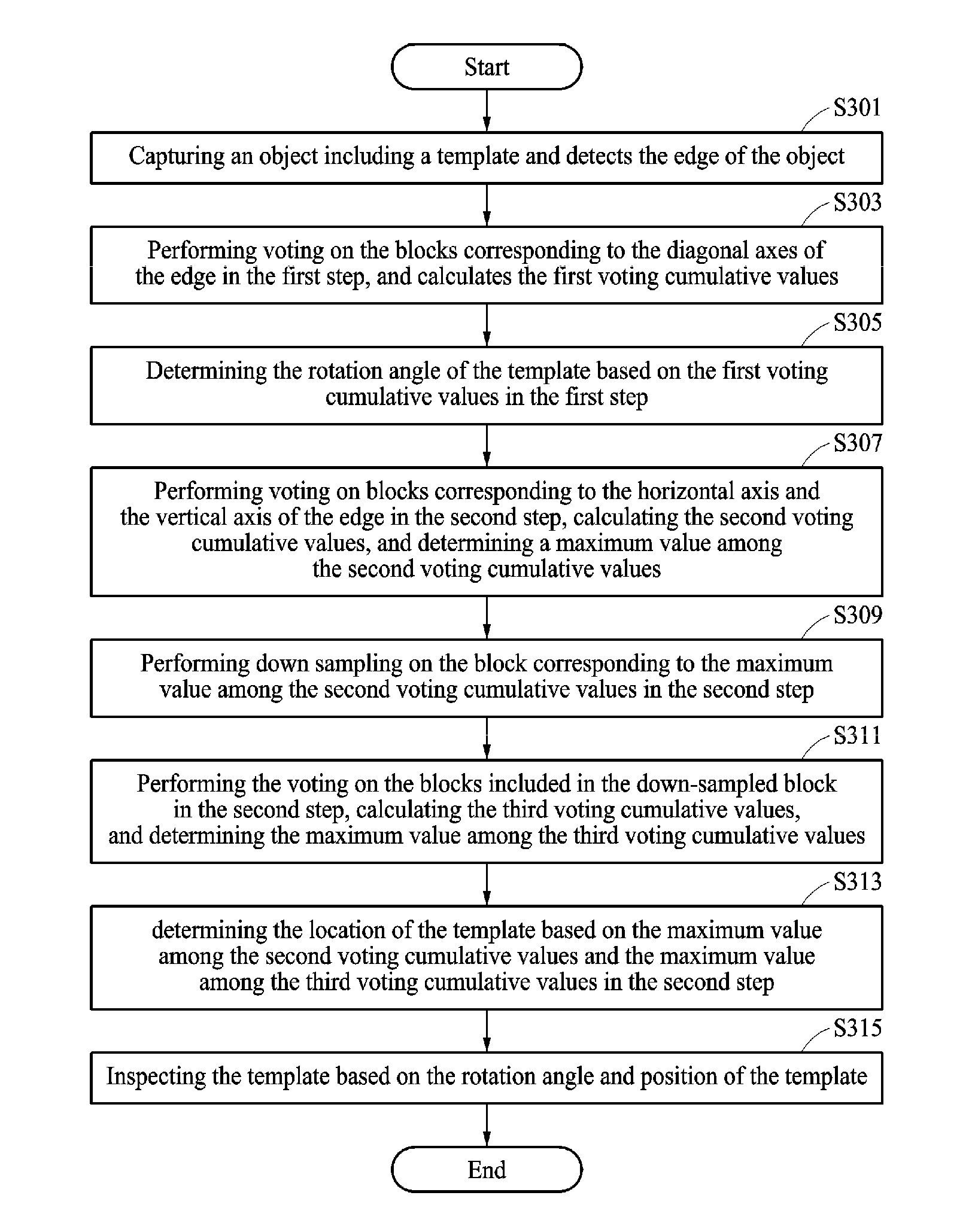

One embodiment of the present invention provides an apparatus and method for inspecting a template using a simplified Hough transform. An apparatus for inspecting a template using a simplified Hough transform according to an embodiment of the present invention comprises a rotation angle determination unit for determining a rotation angle of the template included in the object by performing a first voting procedure on a input image including an object; and a position determining unit for calculating a voting cumulative values for the blocks included in the input image by performing a second voting procedure on the input image, performing a down sampling at least one of the blocks based on the voting cumulative values, and determining a position of the template by performing a third voting procedure on the down sampled blocks.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| KR | B1 | KR101714981 | Aug 03, 2016 |
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G06T Class
- 0 % this patent is cited more than
- 7 Age
