Rotorcraft vibration suppression system in a four corner pylon mount configuration
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 25, 2019
Grant Date -
Feb 8, 2018
app pub date -
Oct 3, 2017
filing date -
Jan 10, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

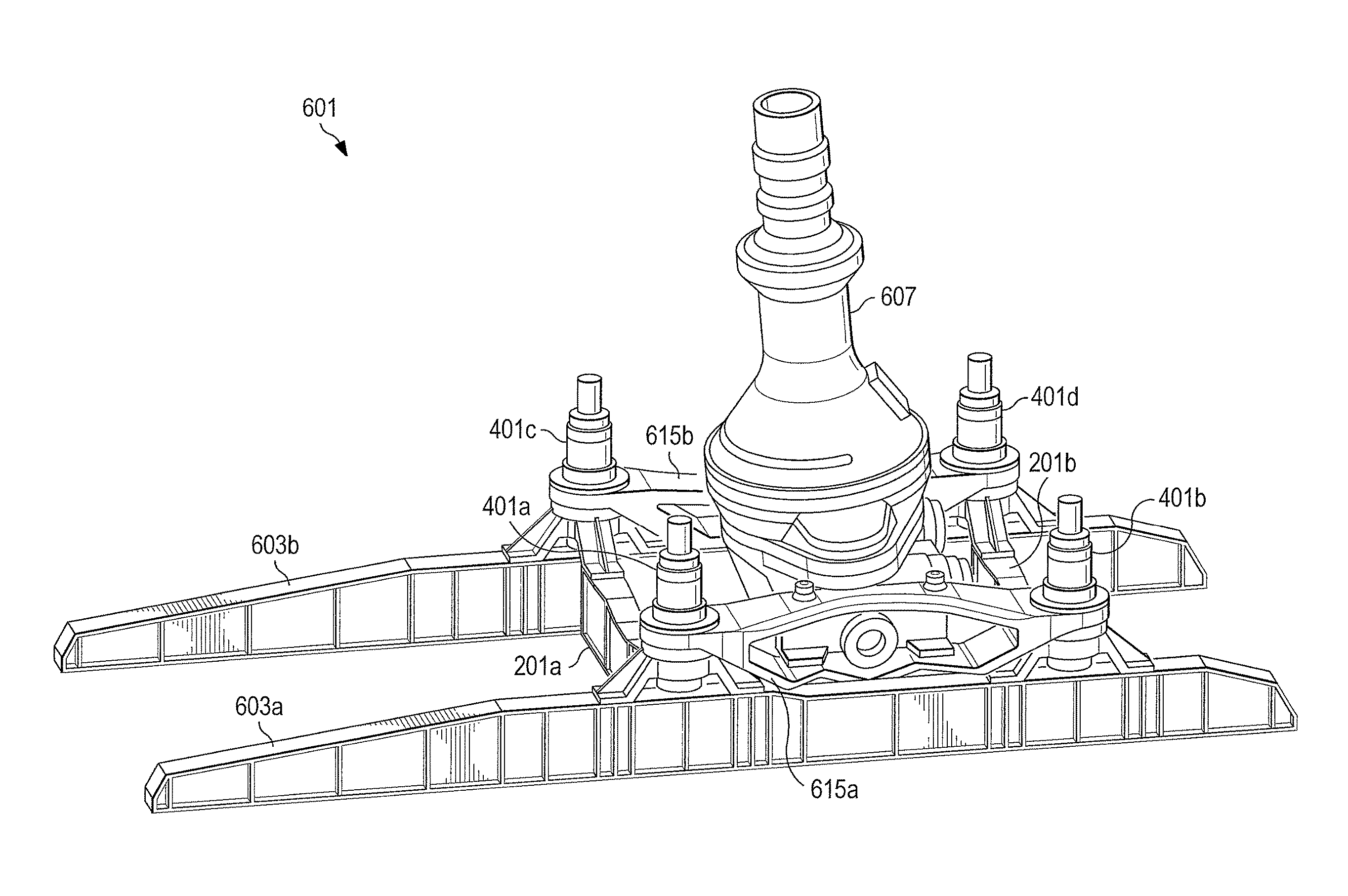

The vibration suppression system includes a vibration isolator located in each corner in a four corner pylon mount structural assembly. The combination of four vibration isolators, two being forward of the transmission, and two being aft of the transmission, collectively are effective at isolating main rotor vertical shear, pitch moment, as well as roll moment induced vibrations. Each opposing pair of vibration isolators can efficiently react against the moment oscillations because the moment can be decomposed into two antagonistic vertical oscillations at each vibration isolator. A pylon structure extends between a pair of vibration isolators thereby allowing the vibration isolators to be spaced a away from a vibrating body to provide increased control.
