Roller guide for a car of an elevator system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 1, 2020
Grant Date -
Feb 8, 2018
app pub date -
Jan 26, 2016
filing date -
Mar 3, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

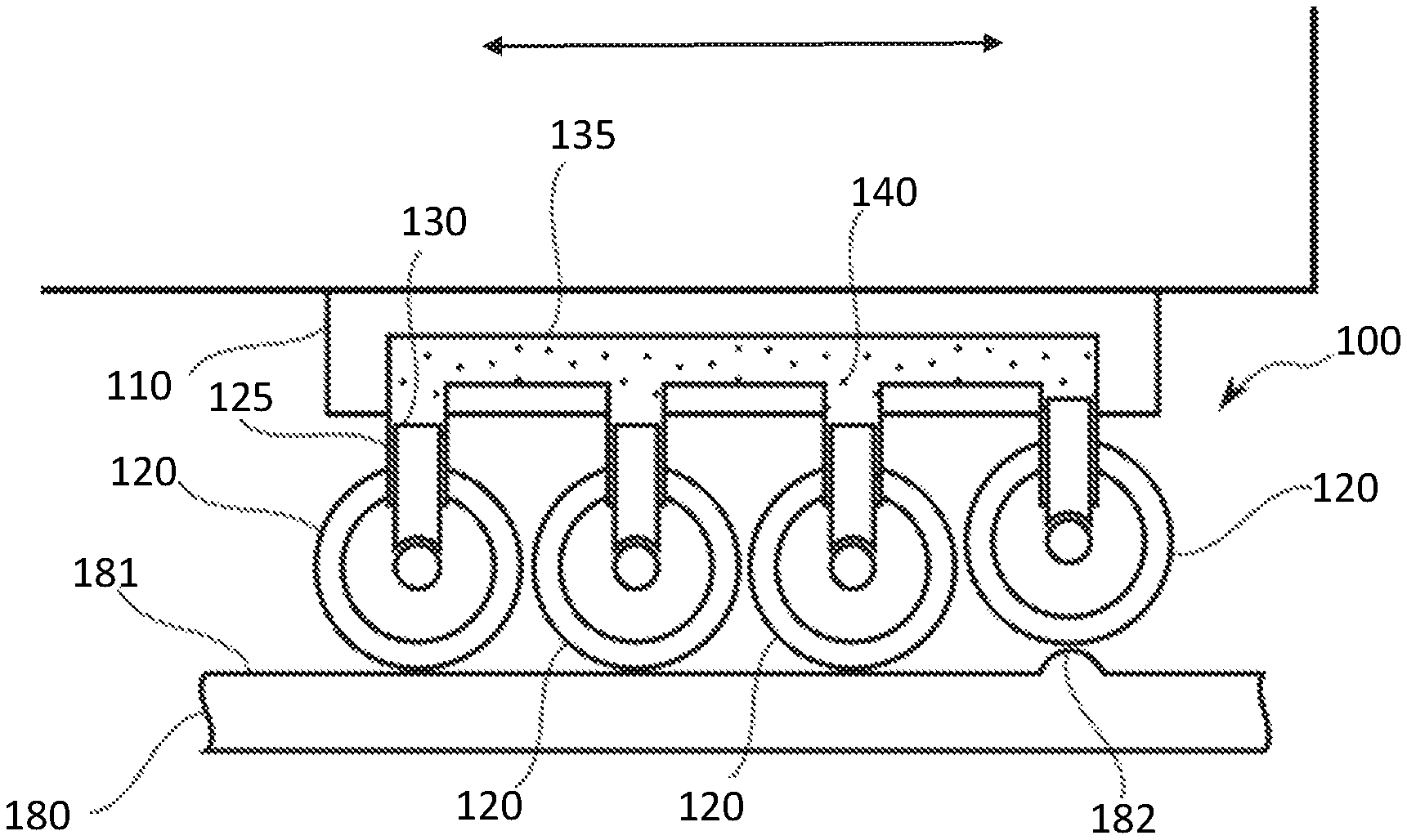

A roller guide for guiding a car of an elevator system along a guide rail may include a roller carrier that can be attached to the car and several rollers disposed on the roller carrier. The roller may be configured to roll by their respective running surface on a rolling surface of the guide rail. The rollers may each be mounted movably in the roller carrier with a direction component perpendicular to the rolling surface of the guide rail. The rollers may be mounted in operative connection with one another at least in part by way of hydraulic fluid such that a movement of one of the rollers perpendicular to the rolling surface of the guide rail causes a directionally-opposite movement of at least a second of the rollers. The present disclosure also concerns a car and an elevator system that employ such roller guides.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- B66B Class
- 514 Applications Filed
- 377 Patents Issued To-Date
- 73.35 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B66B Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 1, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 1, 2032 |
