Vessel with a Hull and at Least a Float
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jun 16, 2016
filing date -
Jun 17, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

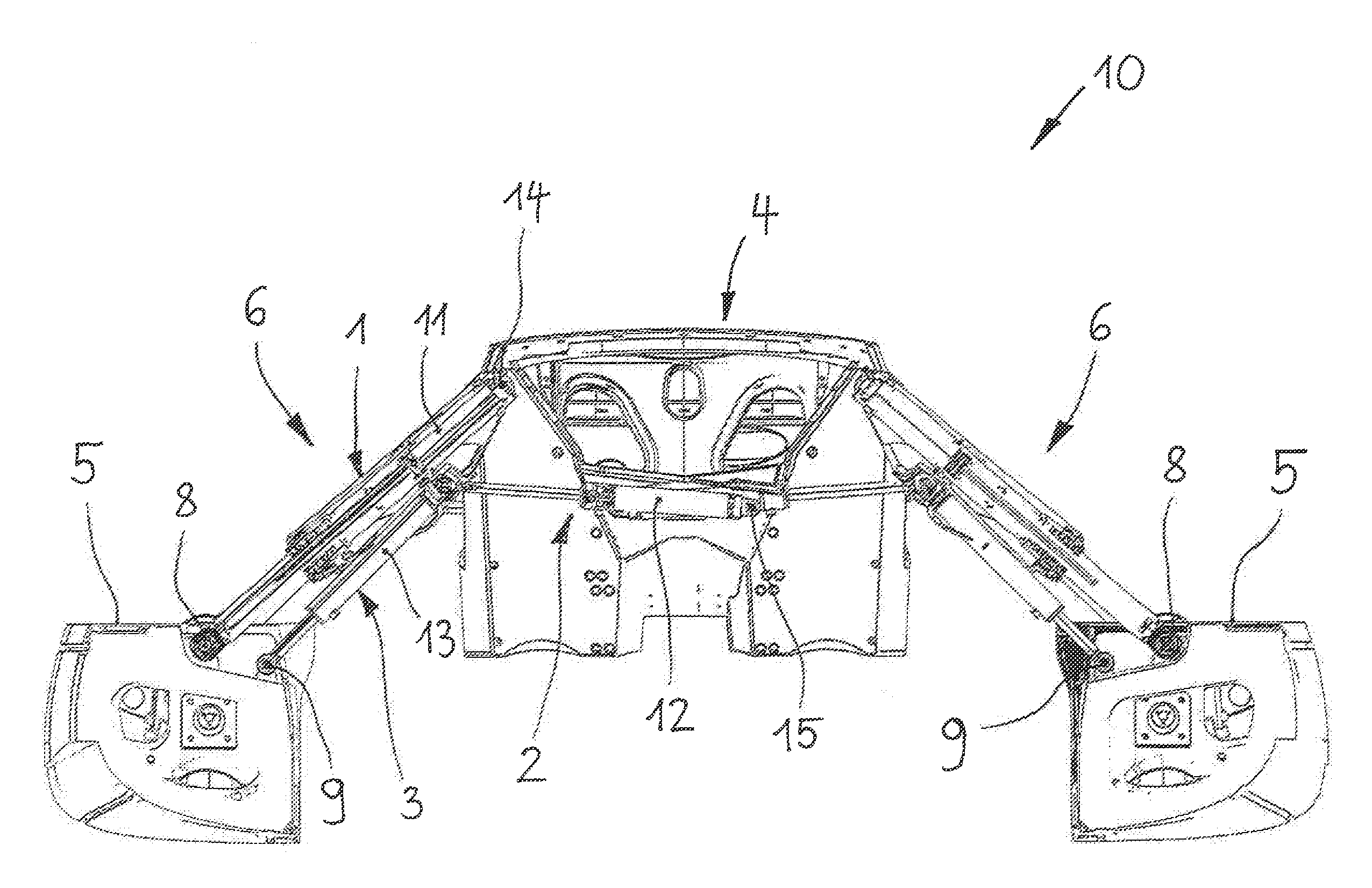

The invention relates to a watercraft (10) having a hull (4) and at least one float (5), which is connected to the hull (4) via at least one kinematic connection (6), wherein the kinematic connection (6) comprises a first leg (1), which is linked at one end on the hull (4) and at the other end on the float (5) and is variable in its length by a first actuator (11), characterized in that the kinematic connection (6) comprises
- a second leg (2), which is linked at one end on the hull (4) and at the other end on a leg (1, 3) extending between hull (4) and float (5), preferably on the first leg (1) and is variable in its length by a second actuator (12), and/ora third leg (3), which is linked at one end on the first leg (1) or on the hull (4) and at the other end on the float (5) and is variable in its length by a third actuator (13), wherein the linkage point of the first leg (1) on the float (5) is spaced apart from the linkage point of the third leg (3) on the float (5).
First Claim
Other Claims data not available
