Device of a turbomachine for separating oil from an air-oil volume flow
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 12, 2020
Grant Date -
Feb 8, 2018
app pub date -
Aug 1, 2017
filing date -
Aug 3, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

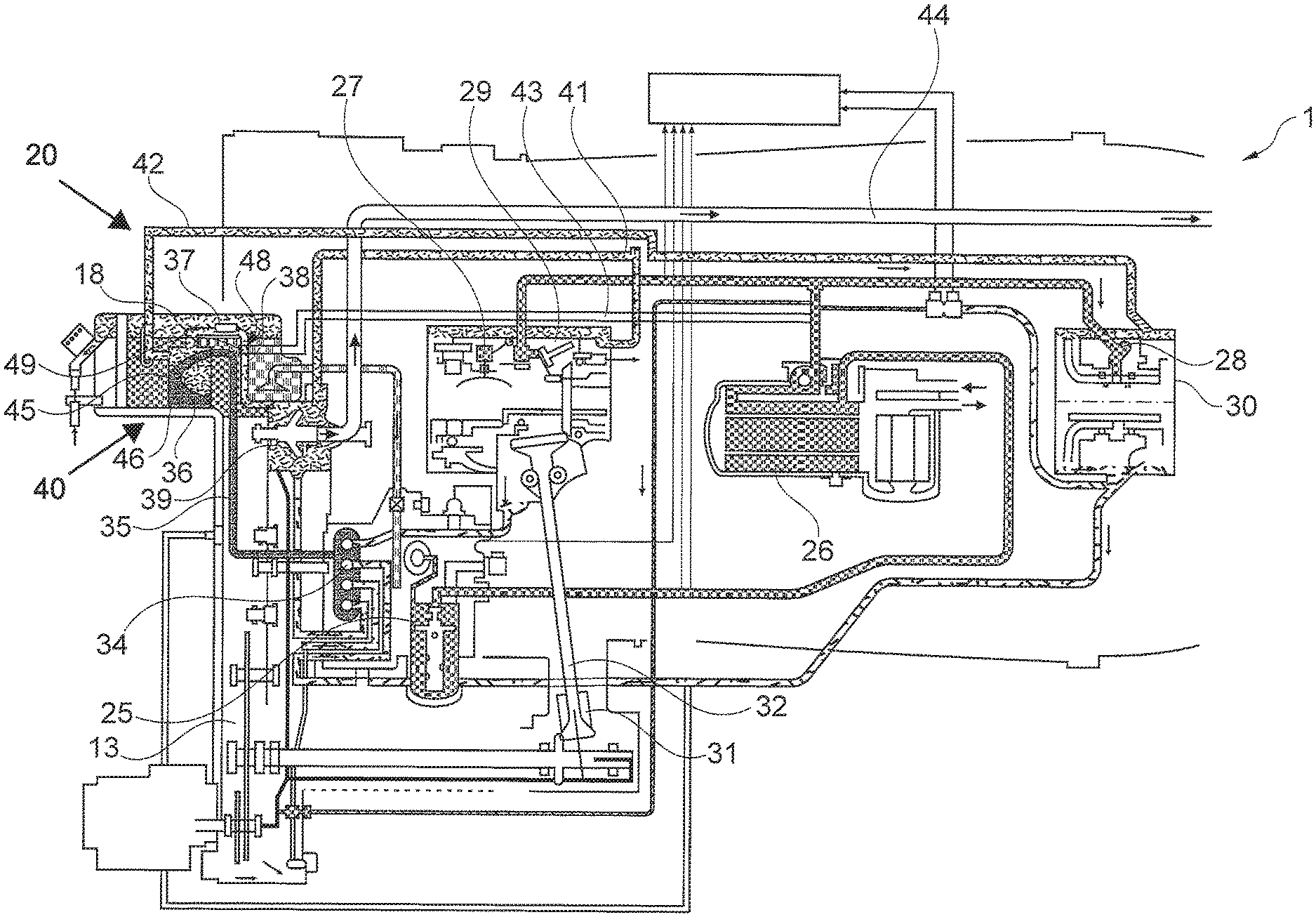

A device of a turbomachine for separating oil from an air-oil volume flow, with a first separation appliance and a second separation appliance, wherein an air-oil volume flow from an oil-loaded area of the turbomachine can be supplied to the first separation appliance, and wherein the air-oil volume flow, the oil loading of which can be reduced in the area of the first separation appliance, can be supplied to the second separation appliance downstream of the first separation appliance by means of a conduit. An appliance for cooling the air-oil volume flow conducted inside the conduit is provided, being arranged downstream of the first separation appliance and upstream of the second separation appliance.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- F02C Class
- 1568 Applications Filed
- 1101 Patents Issued To-Date
- 70.22 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F02C Class
- 45.26 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 12, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 12, 2031 |
