Lighting device, and luminaire
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 11, 2018
Grant Date -
Feb 1, 2018
app pub date -
Jul 15, 2017
filing date -
Jul 26, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

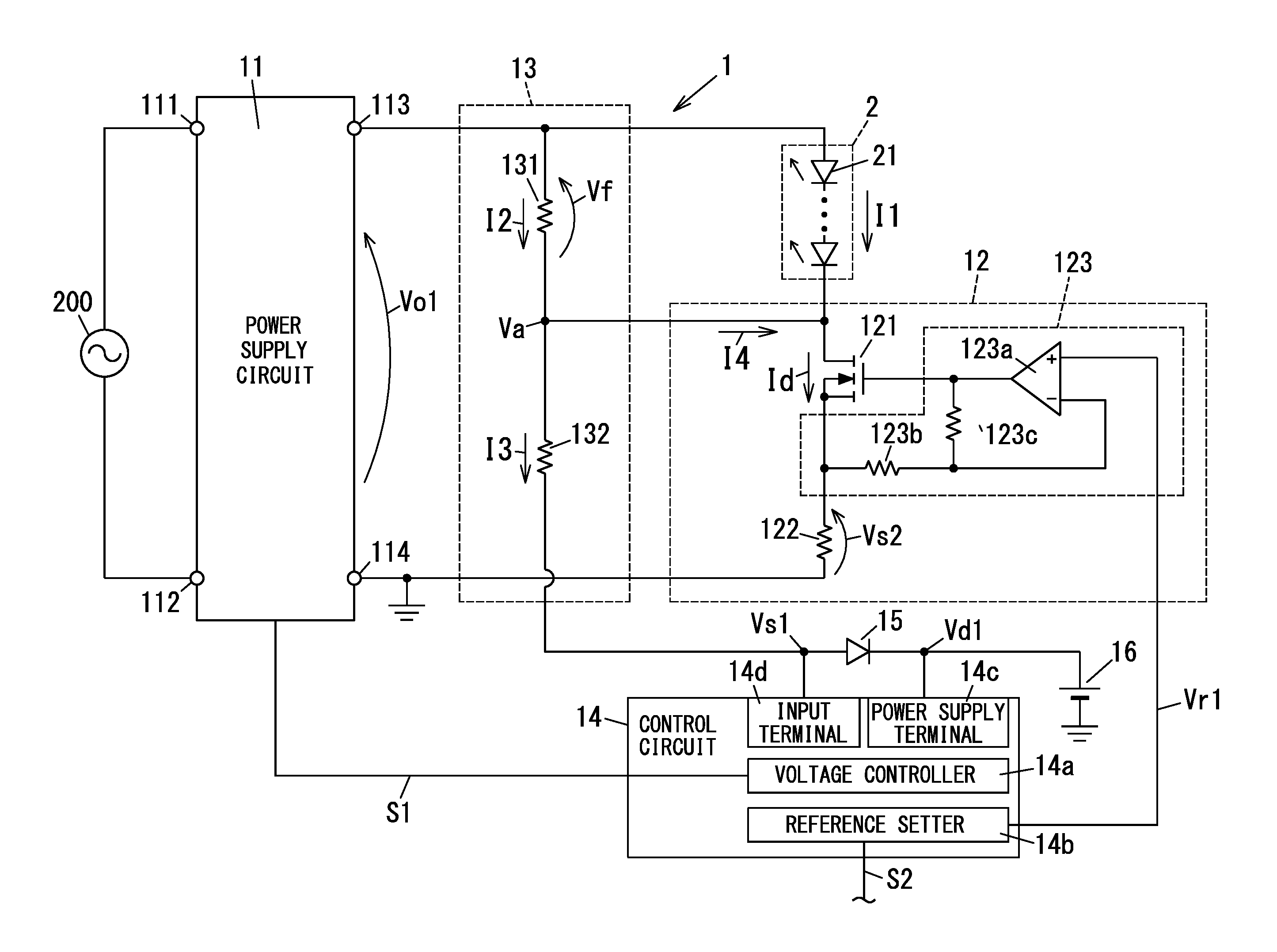

A constant current is configured to control an FET to adjust a drain current so that a detection voltage is equal to a reference voltage. A reference setter is configured to set the reference voltage to a sum of a first voltage and a second voltage. The first voltage is equal to a voltage developing across the detection resistor while a current, which has a same magnitude as a current supplied to the light source so that a current dimming level of the light source is equal to the dimming instruction value, flows through the detection resistor. The second voltage is equal to a voltage developing across the detection resistor while a second current, which has a same magnitude as a current flowing through the limiting resistor while the light source is on, flows through the detection resistor.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H05B Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 11, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 11, 2030 |
