Communication control method and user terminal

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 10237797
APP PUB NO 20180035341A1
SERIAL NO

15727104

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

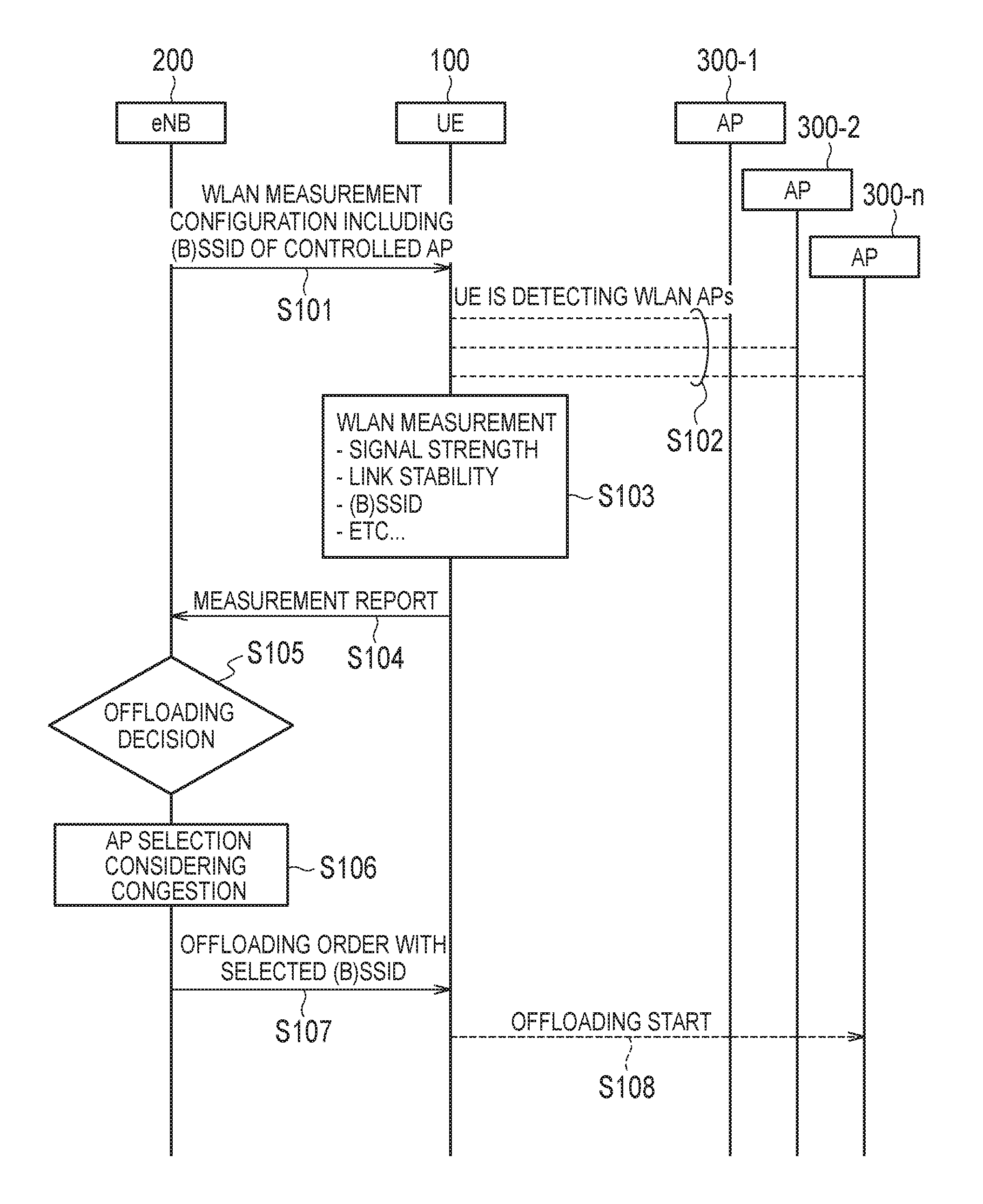

A method, base station, and device perform an offload from a cellular RAN to a wireless LAN via a network selection operation to select an access network with which user terminal traffic is exchanged from the cellular RAN and the wireless LAN on the basis of parameters transmitted from a first base station to the user terminal. The parameters comprise at least one of a cellular signal strength threshold, a WLAN signal strength threshold, and a WLAN load threshold. After transmitting the parameters, the transmitted parameters are transferred from the first cellular base station to a second cellular base station, in response to the user terminal performing a handover from the first cellular base station to the second cellular base station. The transferred parameters enable the second cellular base station to determine whether there is a need for a change of configuration indicated by the transferred parameters.

Loading the Abstract Image... loading....

First Claim

See full text

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
KYOCERA CORPORATIONKYOTO

International Classification(s)

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Chang, Henry San Diego, US 493 4910
Fujishiro, Masato Yokohama, JP 616 2908
Morita, Kugo Yokohama, JP 310 2502
Nagasaka, Yushi Yokohama, JP 118 1052

Cited Art Landscape

Load Citation

Patent Citation Ranking

Forward Cite Landscape

Load Citation

Maintenance Fees

Fee Large entity fee small entity fee micro entity fee due date
7.5 Year Payment $3600.00 $1800.00 $900.00 Sep 19, 2026
11.5 Year Payment $7400.00 $3700.00 $1850.00 Sep 19, 2030
Fee Large entity fee small entity fee micro entity fee
Surcharge - 7.5 year - Late payment within 6 months $160.00 $80.00 $40.00
Surcharge - 11.5 year - Late payment within 6 months $160.00 $80.00 $40.00
Surcharge after expiration - Late payment is unavoidable $700.00 $350.00 $175.00
Surcharge after expiration - Late payment is unintentional $1,640.00 $820.00 $410.00
