Waterproof electronic device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 27, 2020
Grant Date -
Feb 1, 2018
app pub date -
Jul 24, 2017
filing date -
Jul 29, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

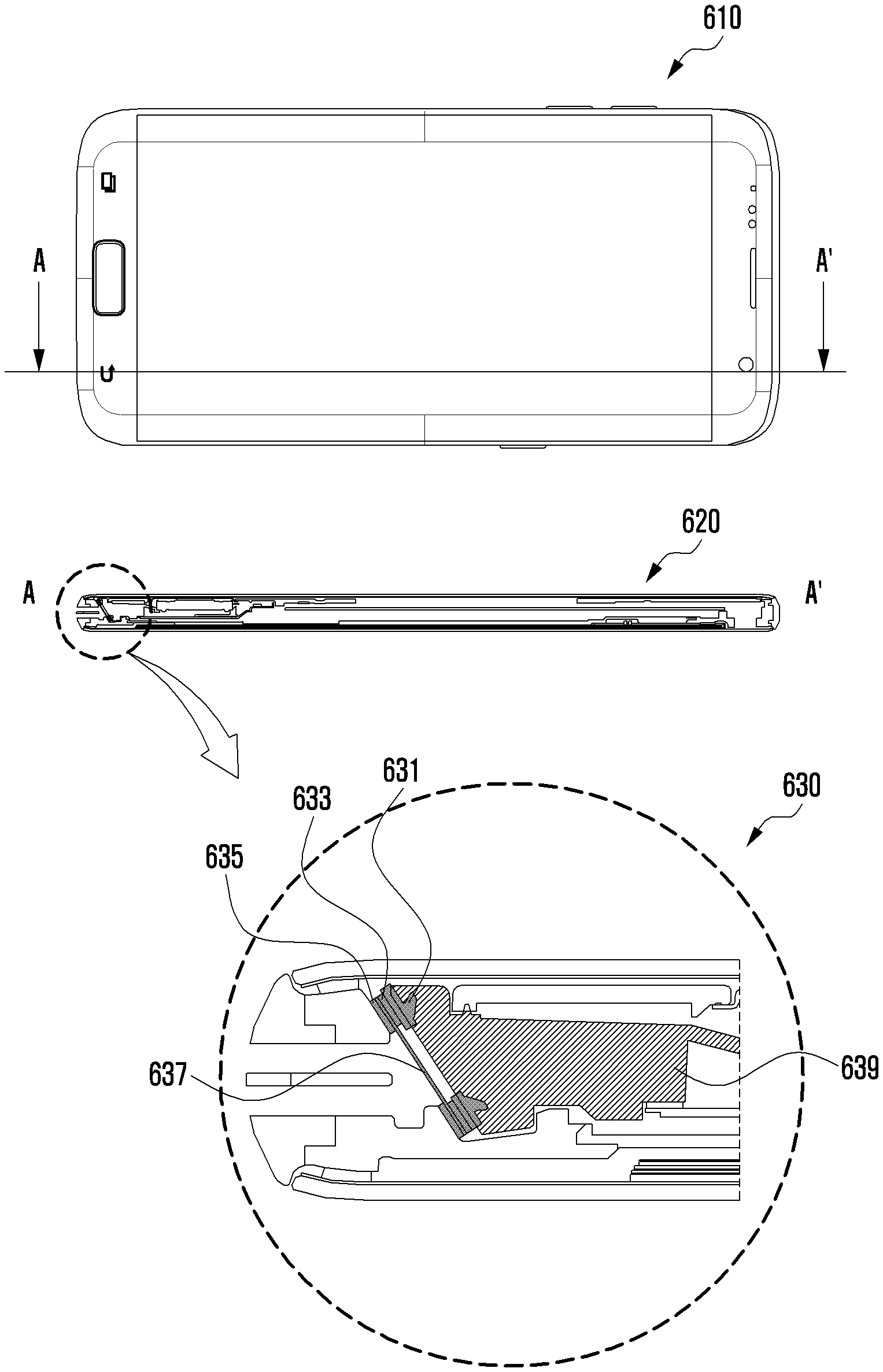

An electronic device is provided which includes a housing an opening in a portion of the housing, an audio component within the housing and connected to the opening, and a membrane structure disposed to prevent a liquid from entering the audio component from outside of the housing, wherein the membrane structure includes a first adhesive layer, a second adhesive layer, and a membrane layer including a central area and a peripheral area around the central area, wherein the first adhesive layer and the second adhesive layer have a closed curve form, the peripheral area is disposed between the first adhesive layer and the second adhesive layer, the central area is coated with a plurality of particles, and at least a portion of the peripheral area contacts at least one of the first adhesive layer and the second adhesive layer.
First Claim
Other Claims data not available
Family
International Classification(s)
- H04M:TELEPHONIC COMMUNICATION
- B82Y:SPECIFIC USES OR APPLICATIONS OF NANO-STRUCTURES; ....
- B29C:SHAPING OR JOINING OF PLASTICS; SHAPING OF SUBSTAN....
- H04R:LOUDSPEAKERS, MICROPHONES, GRAMOPHONE PICK-UPS OR ....
- G06F:ELECTRIC DIGITAL DATA PROCESSING
- H05K:PRINTED CIRCUITS; CASINGS OR CONSTRUCTIONAL DETAIL....
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04M Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 27, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 27, 2032 |
