Image capturing apparatus capable of changing an aperture value based on a change in an aperture diameter, controlling method of the same, and recording medium
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 5, 2019
Grant Date -
Feb 1, 2018
app pub date -
Jul 24, 2017
filing date -
Jul 28, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

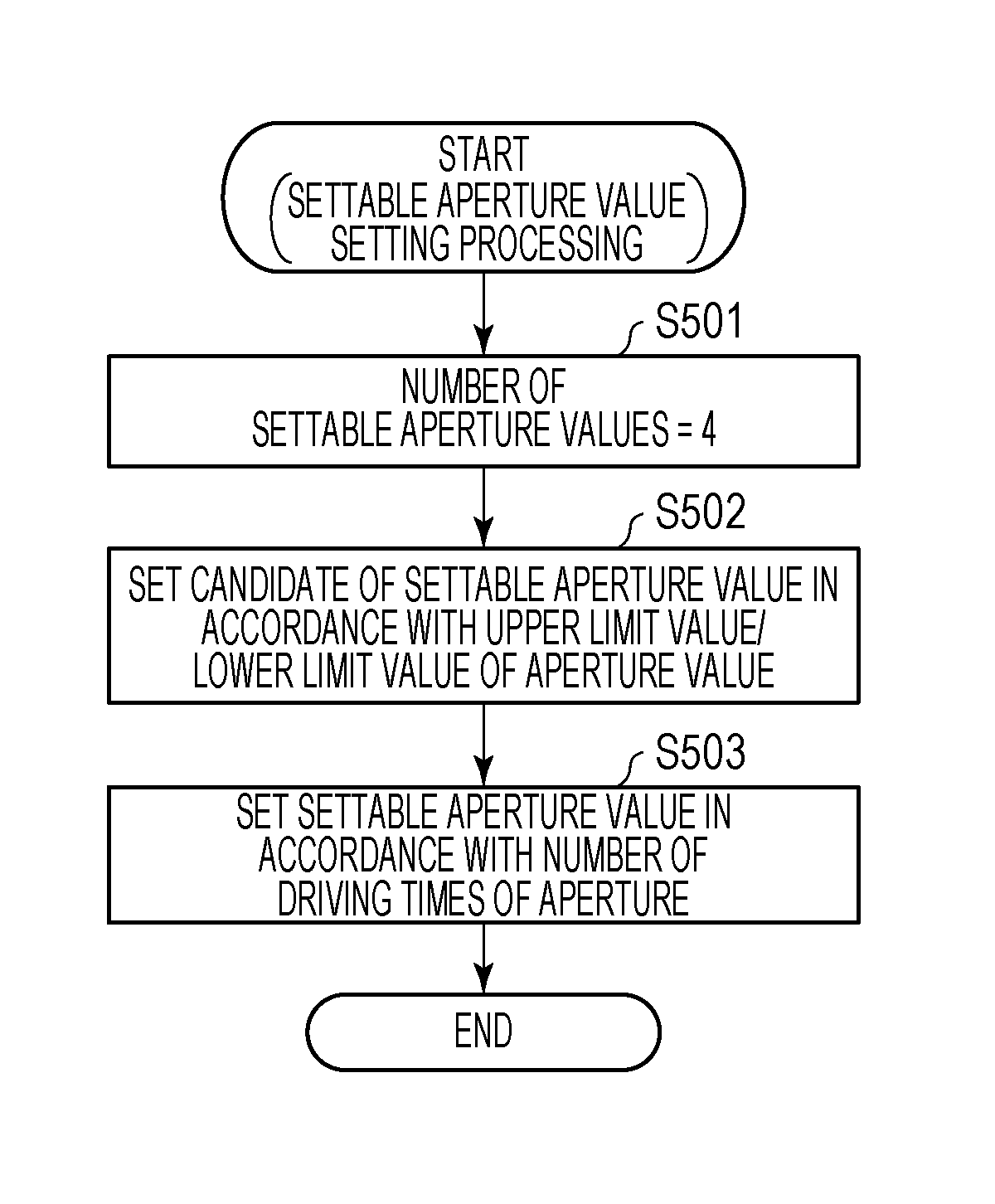

Image capturing apparatuses having an exposure control unit configured to execute exposure control by changing at least one of parameters of an aperture value, an accumulation period of a charge in an image sensor, and an amplification amount of a signal output by the image sensor; and a generation unit configured to generate aperture control information related to a change in the aperture value in the exposure control are included. In a case where an aperture value is changed in accordance with a luminance change of an object, the generation unit generates the aperture control information with which, with respect to a specific aperture value which is settable, an actual aperture value discretely changes. In the case where an aperture value is changed in accordance with the luminance change of the object, on the basis of the aperture control information, the exposure control unit discretely changes the aperture value.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- H04N Class
- 19055 Applications Filed
- 14406 Patents Issued To-Date
- 75.61 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04N Class
- 0 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 5, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 5, 2030 |
