Flash unit having movable light emitting unit and image pickup apparatus equipped with flash unit
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 21, 2018
Grant Date -
Feb 1, 2018
app pub date -
Jul 21, 2017
filing date -
Jul 29, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

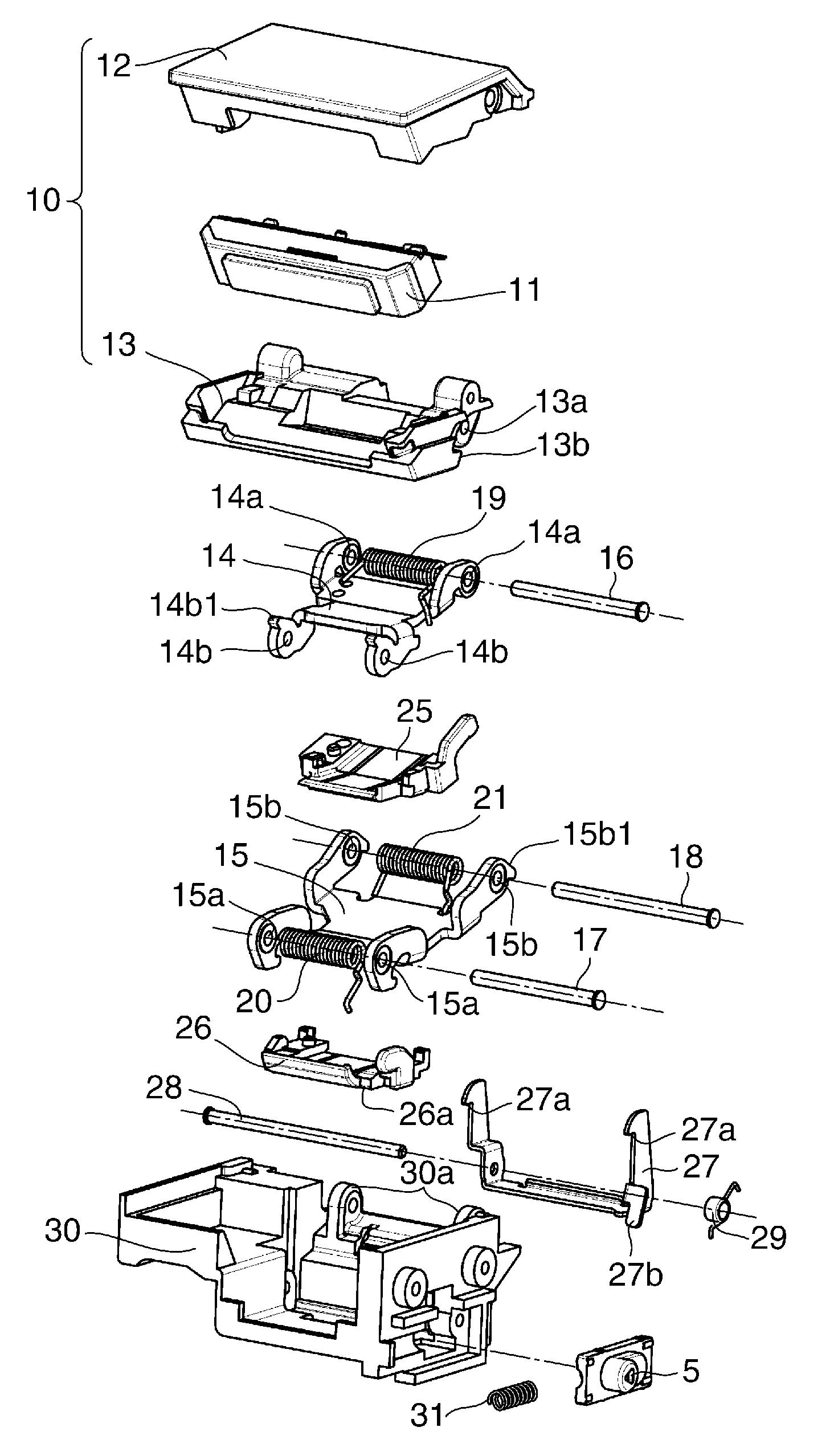

An image pickup apparatus equipped with a flash unit that is capable of popping up a light emitting unit even if a display panel is directed to a photographing direction. The flash unit is provided on an upper face of a body of the image pickup apparatus and includes three parallel rotating shafts, a first support member that is rotatably connected with the light emitting unit through the first rotating shaft, and a second support member that is rotatably connected with the first support member through the second rotating shaft and is rotatably connected with the body through the third rotating shaft. The light emitting unit is movable between a light-emitting position projected and a retracted position inside the body even if the display unit is in a stand-up position that is rotated from a regular position opposite to a back face of the body by 180 degrees.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| JP | B2 | JP6746420 | Jul 29, 2016 |
International Classification(s)
- 2017 Application Filing Year
- H04N Class
- 19055 Applications Filed
- 14406 Patents Issued To-Date
- 75.61 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04N Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 21, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 21, 2030 |
