Method and apparatus for inductive coupling signal transmission
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jul 27, 2016
filing date -
Jul 27, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

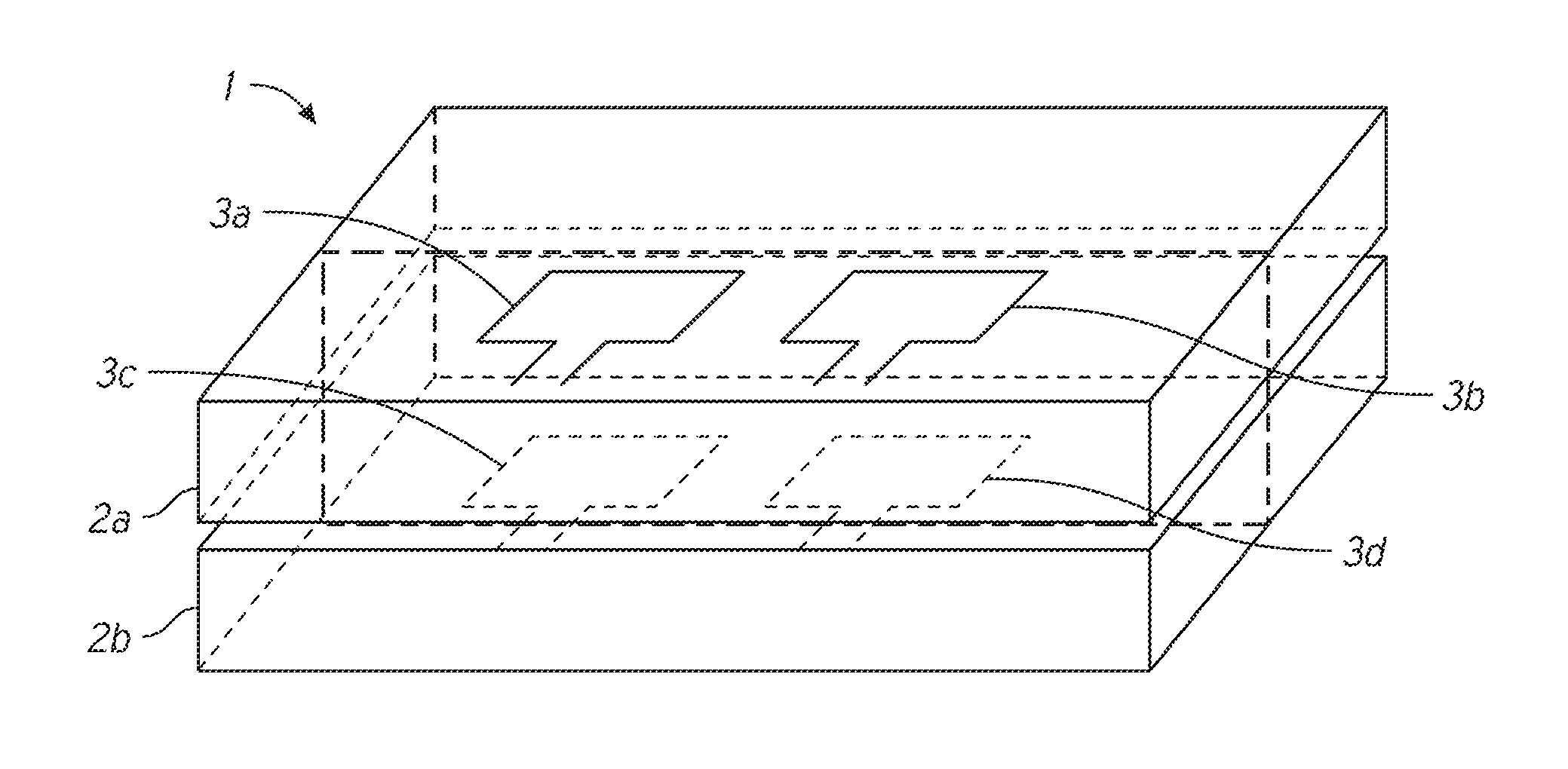

Method and Apparatuses for of transmitting data between semiconductor chips are described. An example apparatus includes a first semiconductor chip and a second semiconductor chip. The first semiconductor chip includes first and second inductors. The first semiconductor chip transmits a first combination of a plurality of data bits in logical value by flowing a first current through the first inductor and by flowing substantially no current through the second inductor. The second semiconductor chip includes third and fourth inductors that correspond respectively to the first and second inductors of the first semiconductor chip. The second semiconductor chip receives the first combination of the plurality of data bits in logical value by detecting an electromotive force at the third inductor responsive to the first current and by detecting substantially no electromotive force at the fourth inductor responsive to no current.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H01L Class
- 23.71 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 17, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 17, 2030 |
