Delay compensated continuous time comparator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 22, 2018
Issued Date -
N/A
app pub date -
Jul 26, 2016
filing date -
Jul 26, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

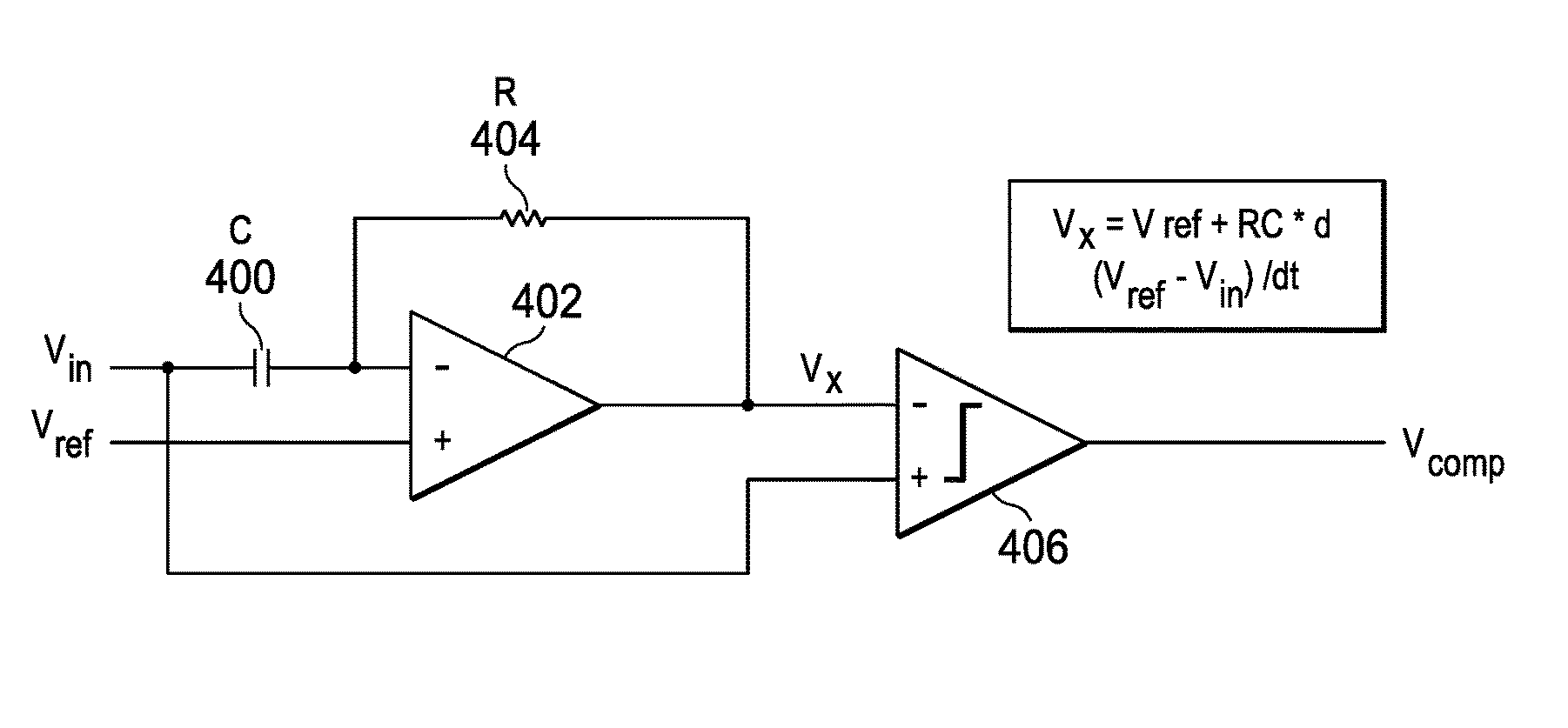

A delay compensated comparator circuit is disclosed. The circuit includes an amplifier circuit having a first input terminal coupled to receive a reference signal and having a second input terminal and a first output terminal. A capacitor is arranged to couple an input signal to the second input terminal. A resistor is coupled between the first output terminal and the second input terminal. A comparator circuit has a third input terminal coupled to receive the input signal, a fourth input terminal coupled to the first output terminal, and a second output terminal.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H03K Class
- 21.67 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 22, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 22, 2029 |
