Electric machine with stator having even slot distribution
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 22, 2020
Grant Date -
Feb 1, 2018
app pub date -
Jul 18, 2017
filing date -
Jul 28, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

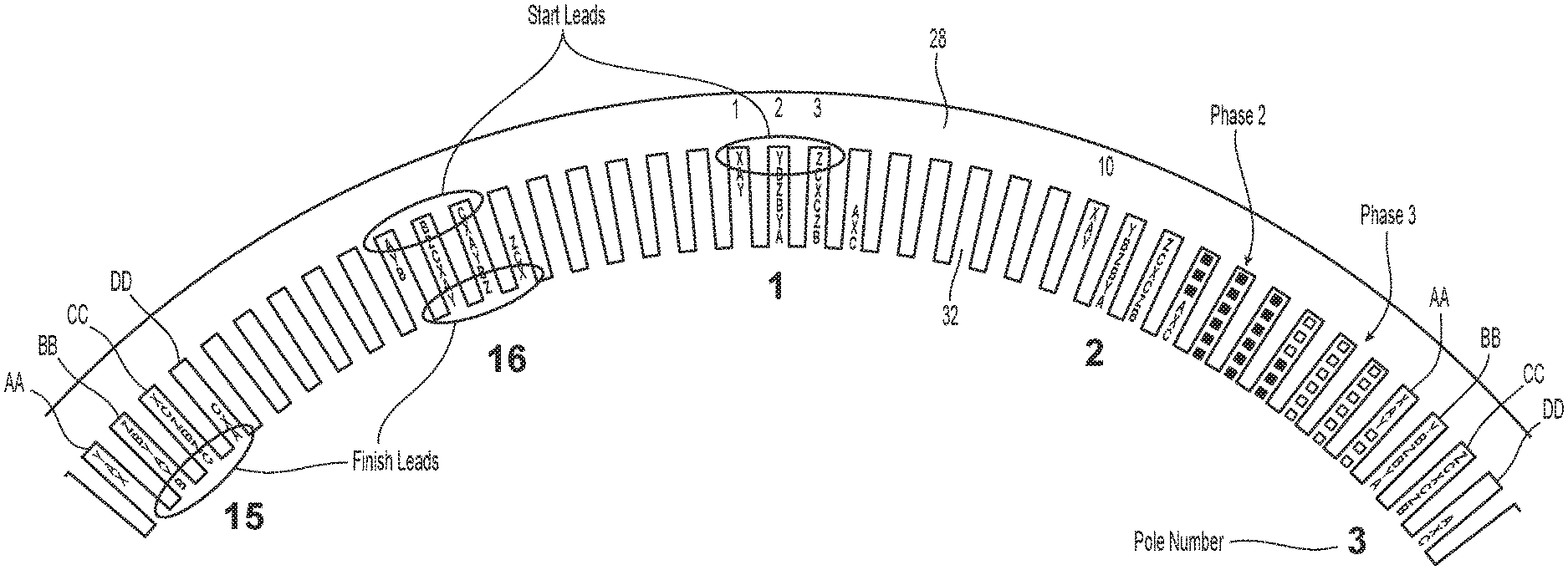

A multi-phase electric machine having plurality of windings are mounted on the stator core that define a plurality of phases wherein, for each phase, the windings include at least two parallel windings, each winding comprising a pair of continuous wires which are connected in series. For each pole, the parallel windings fill one or more central slots and two outer slots. Each winding fills each central slot twice the number of times that the winding fills each outer slot to thereby define a slot fill ratio of 2:1 between central slots and outer slots and wherein each wire of the wire pair forming a winding fills the slots in a ratio that differs from the slot fill ratio. Phase shift end loops shift the windings from one outer slot to the other outer slot. Position change end loops alter the relative positions of the parallel windings.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H02K Class
- 45.74 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 22, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 22, 2032 |
