Multi-bay modular battery charging system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 12, 2019
Grant Date -
Feb 1, 2018
app pub date -
Jul 29, 2016
filing date -
Jul 29, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

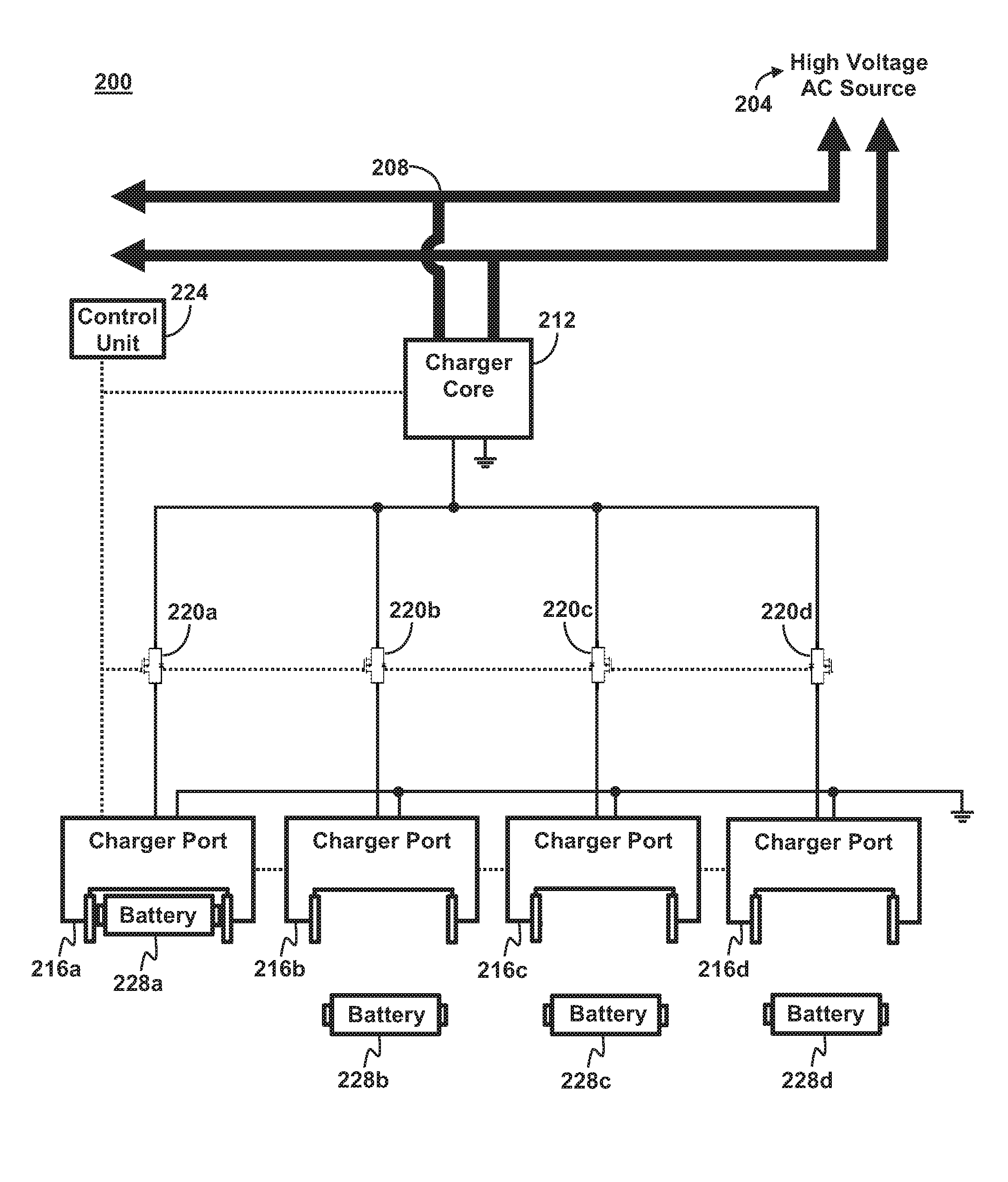

A battery charging system comprises a voltage bus; at least one charging circuit comprising: an input connected to the voltage bus; an output; and a converter connected between the input and the output and configured to provide DC power to the output; a plurality of charging ports, each charging port comprising: an input; and a pair of contacts configured to connect to battery terminals, the pair of contacts being connected to the input to enable a voltage received at the input to be applied across the pair of contacts; and a plurality of switches configured to connect and disconnect the output of the at least one charging circuit to the input of any one of the charging ports in the plurality of charging ports; and a control unit operably connected to the plurality of switches and configured to operate the plurality of switches.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2016 Application Filing Year
- H02J Class
- 5140 Applications Filed
- 3941 Patents Issued To-Date
- 76.68 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H02J Class
- 32.58 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 12, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 12, 2030 |
