Apparatus for ejecting at least one integrated circuit card
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 2, 2019
Grant Date -
Feb 1, 2018
app pub date -
Oct 11, 2017
filing date -
Jun 25, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

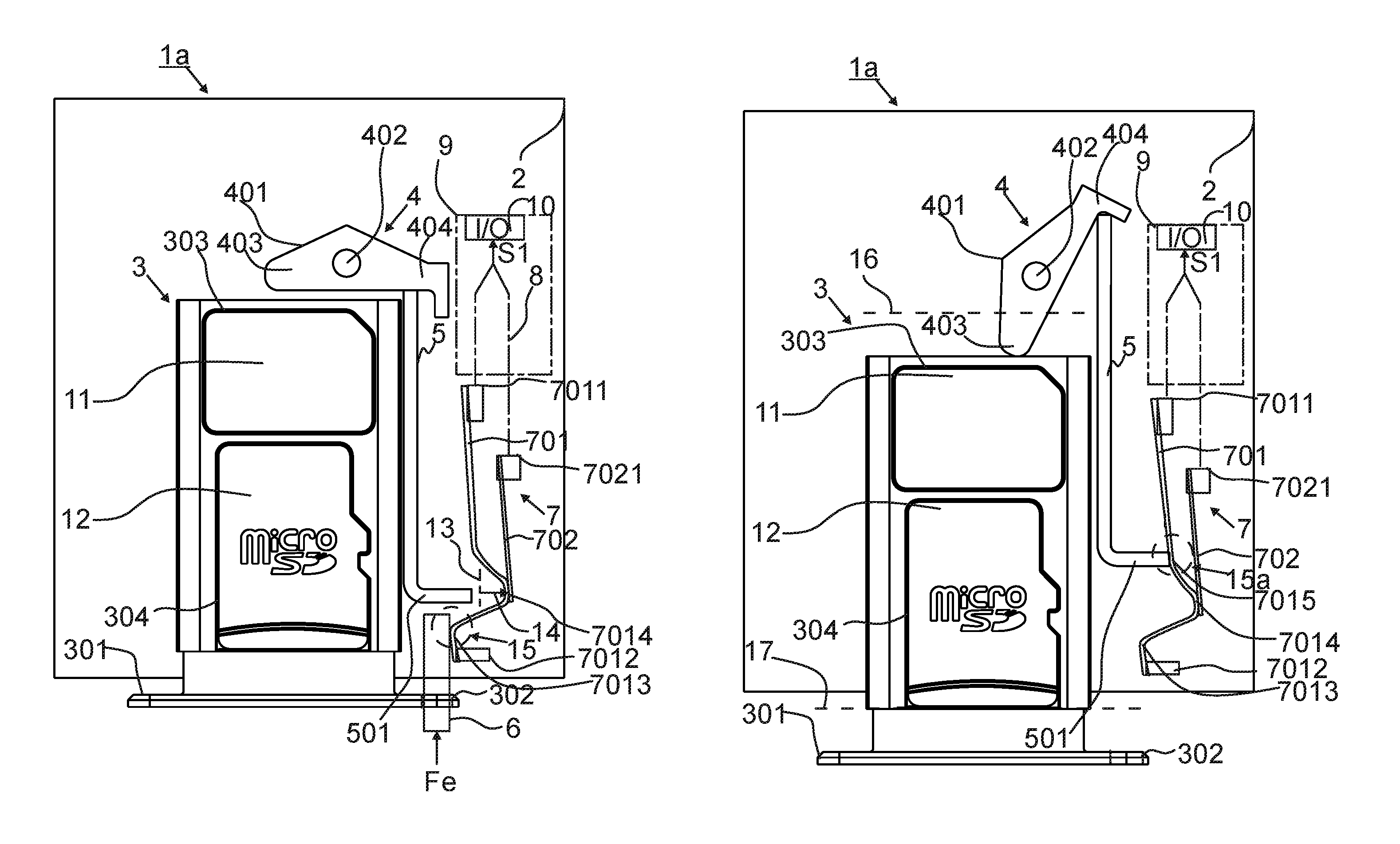

An apparatus is described. In an embodiment, the apparatus comprises a housing; a tray; an ejector; a push member having two positions, the push member is configured to receive an external force for moving the push member and to operate the ejector to eject the tray to an ejected open position when the push member is moved to a second position and to maintain in the second position; and a switch comprising two electric position; the switch is configured to switch to a first electric position when receiving the external force, and the push member is configured to maintain the switch in the first electric position when the push member is moved to the second position causing the tray to eject; when the tray is returned to a retracted closed position, the push member is moved to a first position causing the switch to switch to a second electric position.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- H01R Class
- 4173 Applications Filed
- 3485 Patents Issued To-Date
- 83.52 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H01R Class
- 25.70 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 2, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 2, 2031 |
