ELECTRONIC DEVICE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jul 25, 2017
filing date -
Jul 27, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

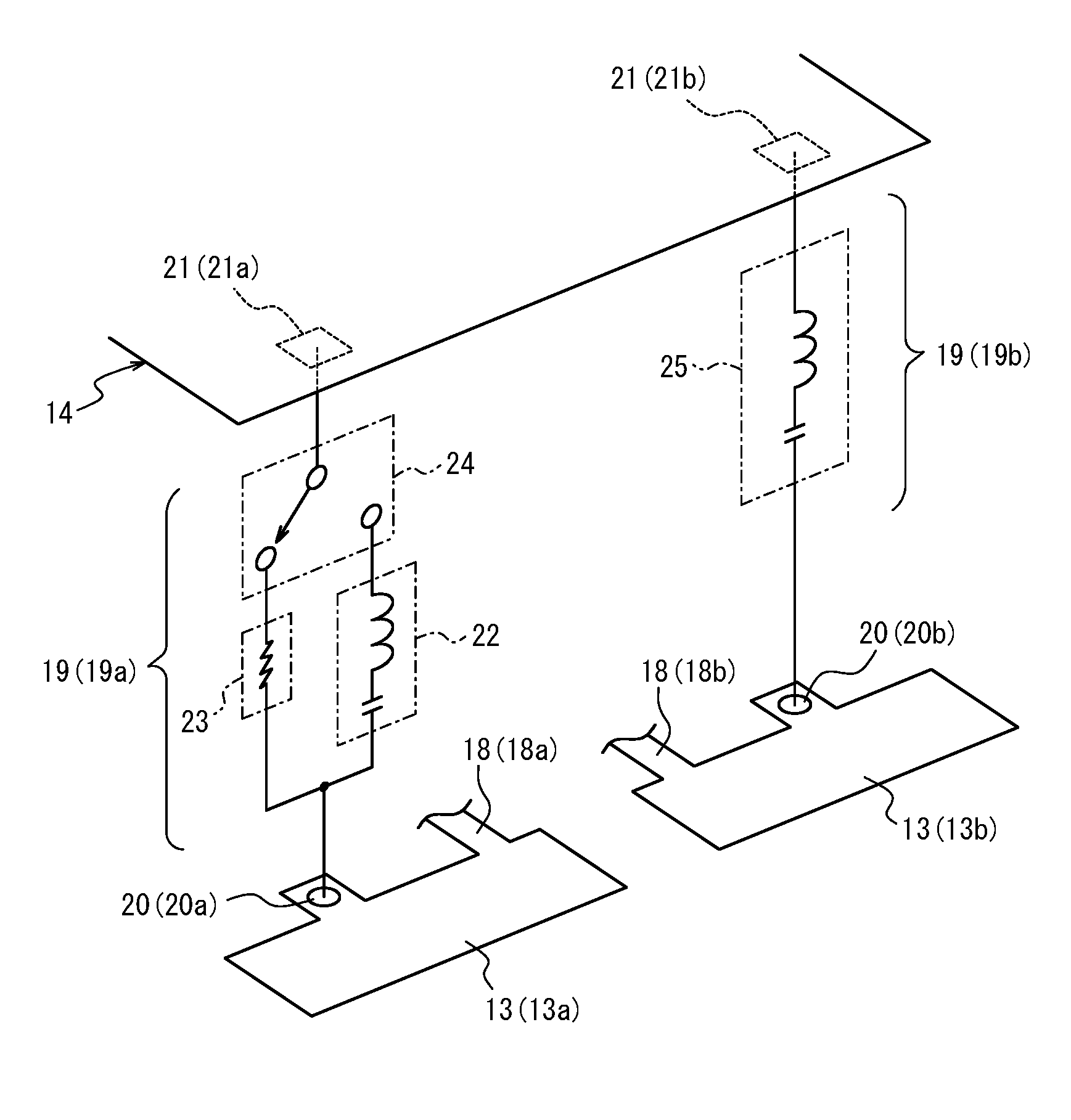

An electronic device that reduces deterioration of the antenna characteristics of an antenna corresponding to a plurality of communication bands is provided. An electronic device includes an antenna corresponding to a plurality of communication bands, a conductive member, a GND terminal, a first circuit, a second circuit having an impedance lower than that of the first circuit and a switching circuit. The first circuit and the second circuit can each connect the conductive member and the GND terminal. The switching circuit switches a circuit connecting the conductive member and the GND terminal between the first circuit and the second circuit depending on the communication band for use.
First Claim
Other Claims data not available
