Method of manufacturing light-emitting device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 17, 2018
Grant Date -
Feb 1, 2018
app pub date -
Jun 14, 2017
filing date -
Jul 29, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

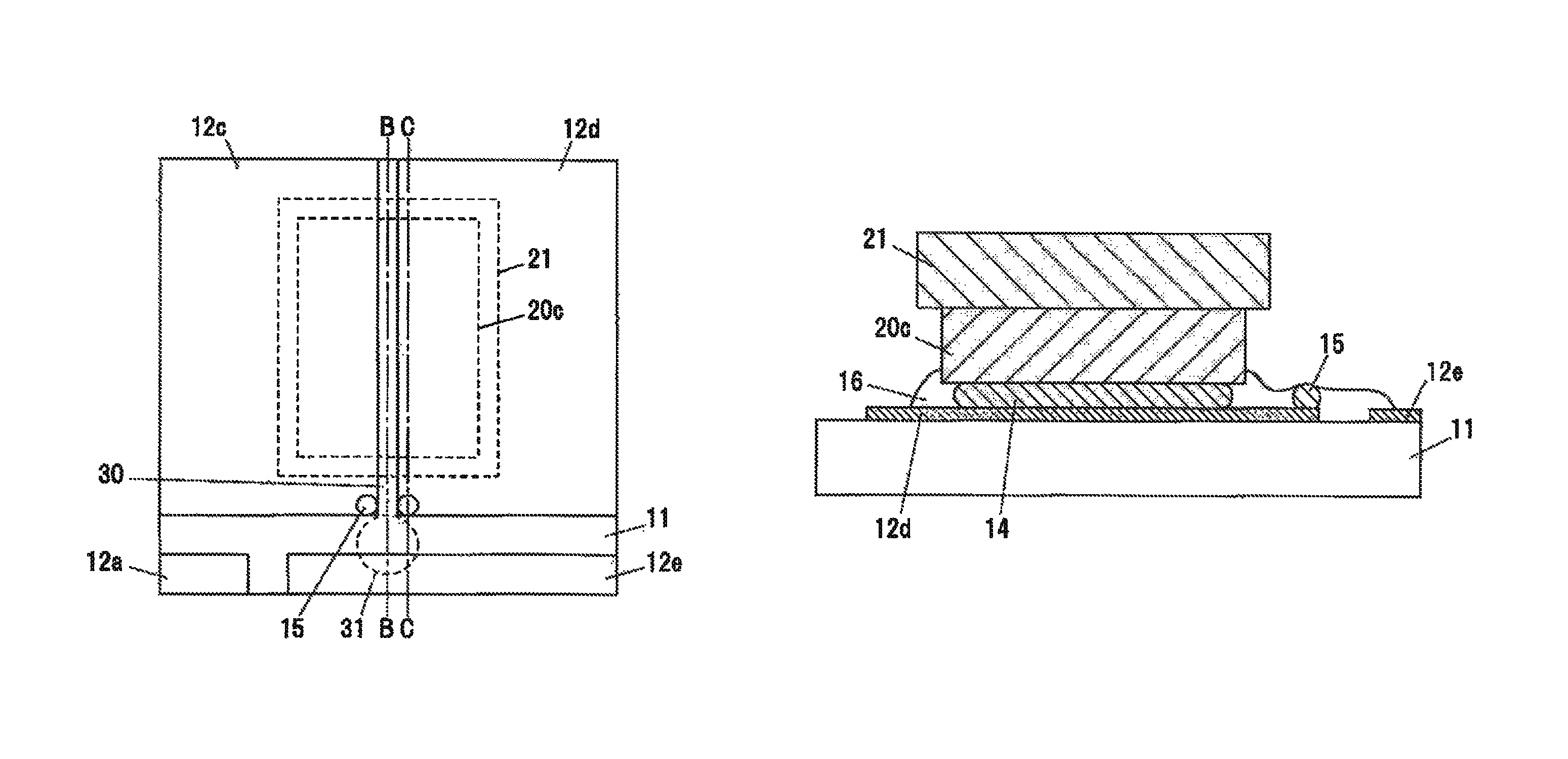

A method of manufacturing a light-emitting device that includes a circuit board with p- and n-electrodes formed on a surface of a substrate and a light-emitting element connected to the p- and n-electrodes of the circuit board via a conductor member. The method includes forming two protrusions facing each other on both sides of a gap between the p- and n-electrodes of the circuit board, and dispensing a underfill at a position on an opposite side to the light-emitting element with respect to the two protrusions, allowing the dispensed underfill to flow toward the light-emitting element by a capillary action through the gap between the p- and n-electrodes of the circuit board while contacting the protrusions, and filling, by the capillary action, a gap between the circuit board and the light-emitting element with the underfill reaching a bottom of the light-emitting element.
