LED WITH PATTERNED SURFACE FEATURES BASED ON EMISSION FIELD PATTERNS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Oct 11, 2017
filing date -
Jun 19, 2013
priority date (Note) -
Published
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

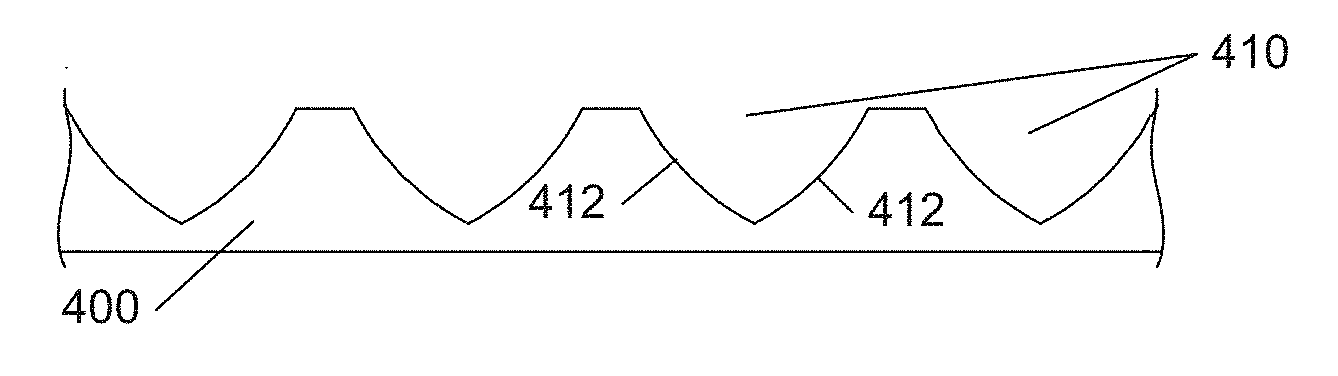

The escape surface of a light emitting element includes features that include sloped surfaces that have angles of inclination that are based on the direction of peak light output from the light emitting element. If the light output exhibits a number of lobes at different directions, the sloped surfaces may have a corresponding number of different angles of inclination. To minimize the re-injection of light into adjacent features, adjacent features may be positioned to avoid having surfaces that directly face each other. The features may be shaped or positioned to provide a pseudo-random distribution of inclined surfaces across the escape surface, and multiple roughening processes may be used.
