Circuit boards and semiconductor packages including protruding pattern on substrate
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 13, 2018
Grant Date -
Feb 1, 2018
app pub date -
Jul 7, 2017
filing date -
Jul 29, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

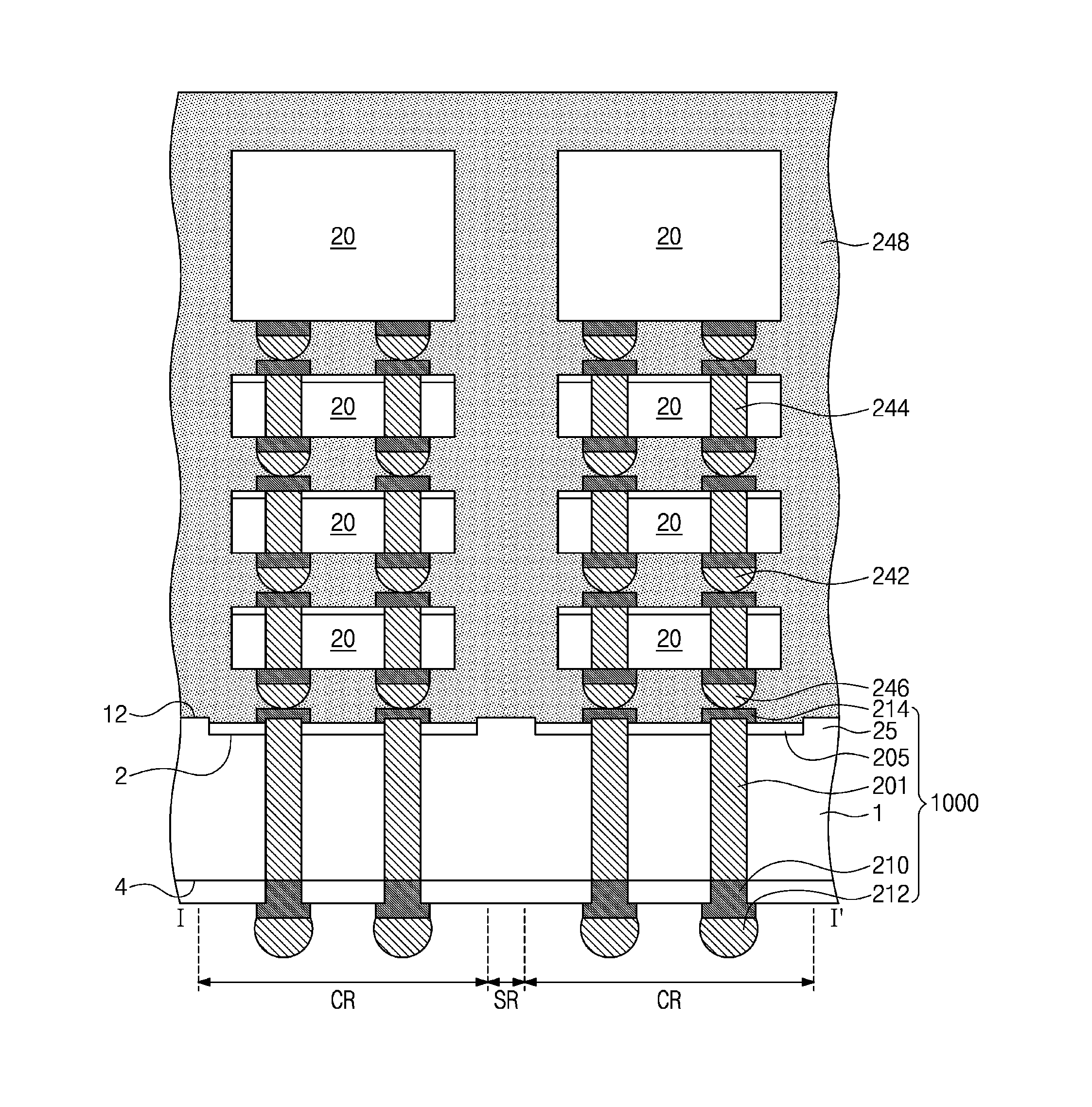

A circuit board comprises a mother substrate including first and second scribing regions, the first scribing region extending in first direction, the second scribing region extending in second direction, the first and second directions crossing each other, the mother substrate including chip regions defined by the first and second scribing regions, and a through via penetrating the chip regions of the mother substrate. The mother substrate comprises a first alignment pattern protruding from a top surface of the mother substrate. The first alignment pattern is disposed on at least one of the scribing regions.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- H01L Class
- 30754 Applications Filed
- 25260 Patents Issued To-Date
- 82.14 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- H01L Class
- 23.71 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 13, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 13, 2030 |
