Monolithic microwave integrated circuit (MMIC) and method for forming such MMIC having rapid thermal annealing compensation elements
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jul 26, 2016
filing date -
Jul 26, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

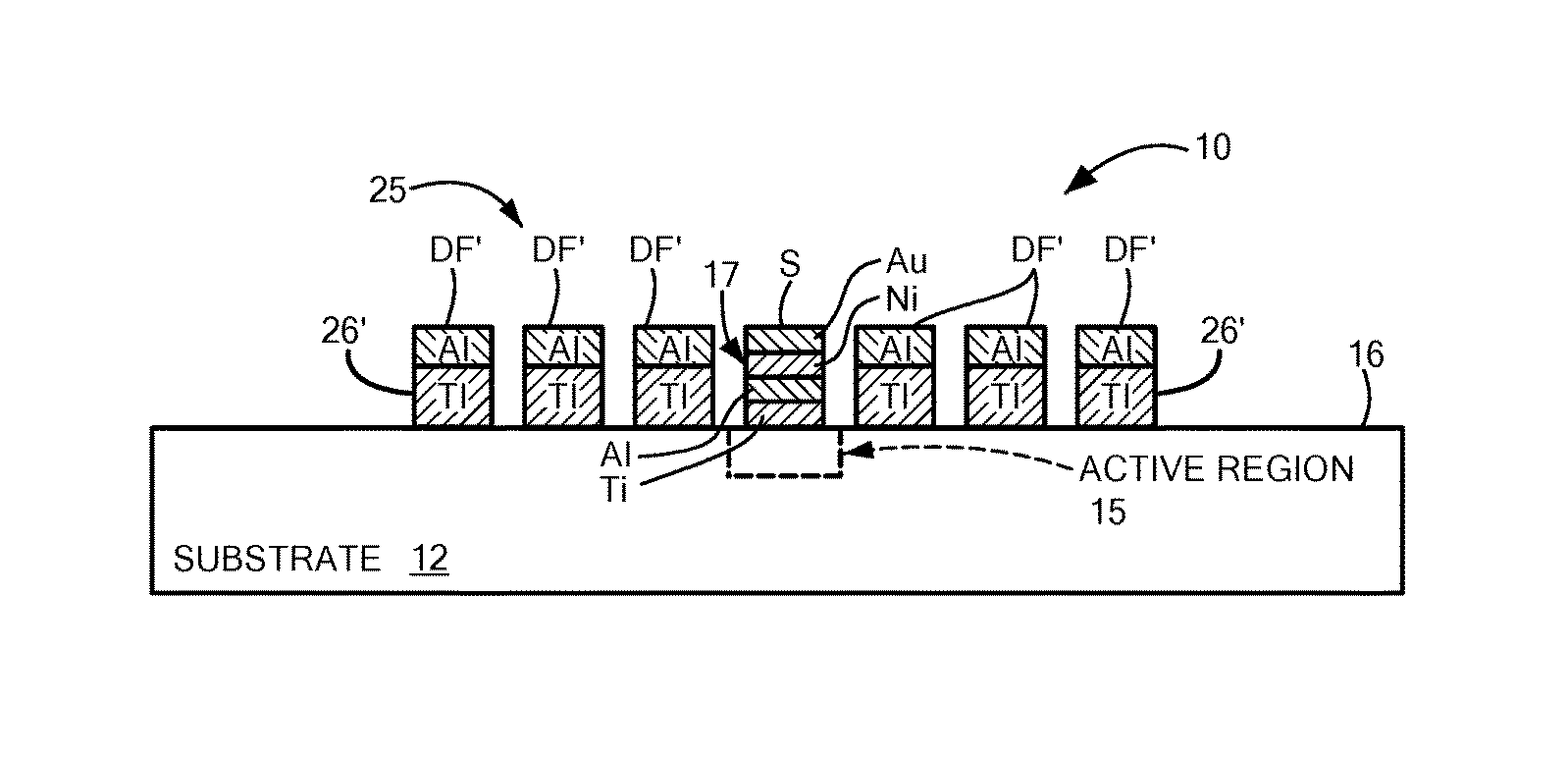

A method and structure, the structure having a substrate, an active device in an active device semiconductor region; of the substrate, a microwave transmission line, on the substrate, electrically connected to the active device, and microwave energy absorbing “dummy” fill elements on the substrate. The method includes providing a structure having a substrate, an active device region on a surface of the structure, an ohmic contact material on the active device region, and a plurality of “dummy” fill elements on the surface to provide uniform heating of the substrate during a rapid thermal anneal process, the ohmic contact material and the “dummy” fill elements having the same radiant energy reflectivity. The rapid thermal anneal processing forms an ohmic contact between an ohmic contact material and the active device region and simultaneously converts the “dummy” fill elements into microwave lossy “dummy” fill elements.
