Semiconductor device structure
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 2, 2018
Grant Date -
Feb 1, 2018
app pub date -
Oct 10, 2017
filing date -
Jan 27, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

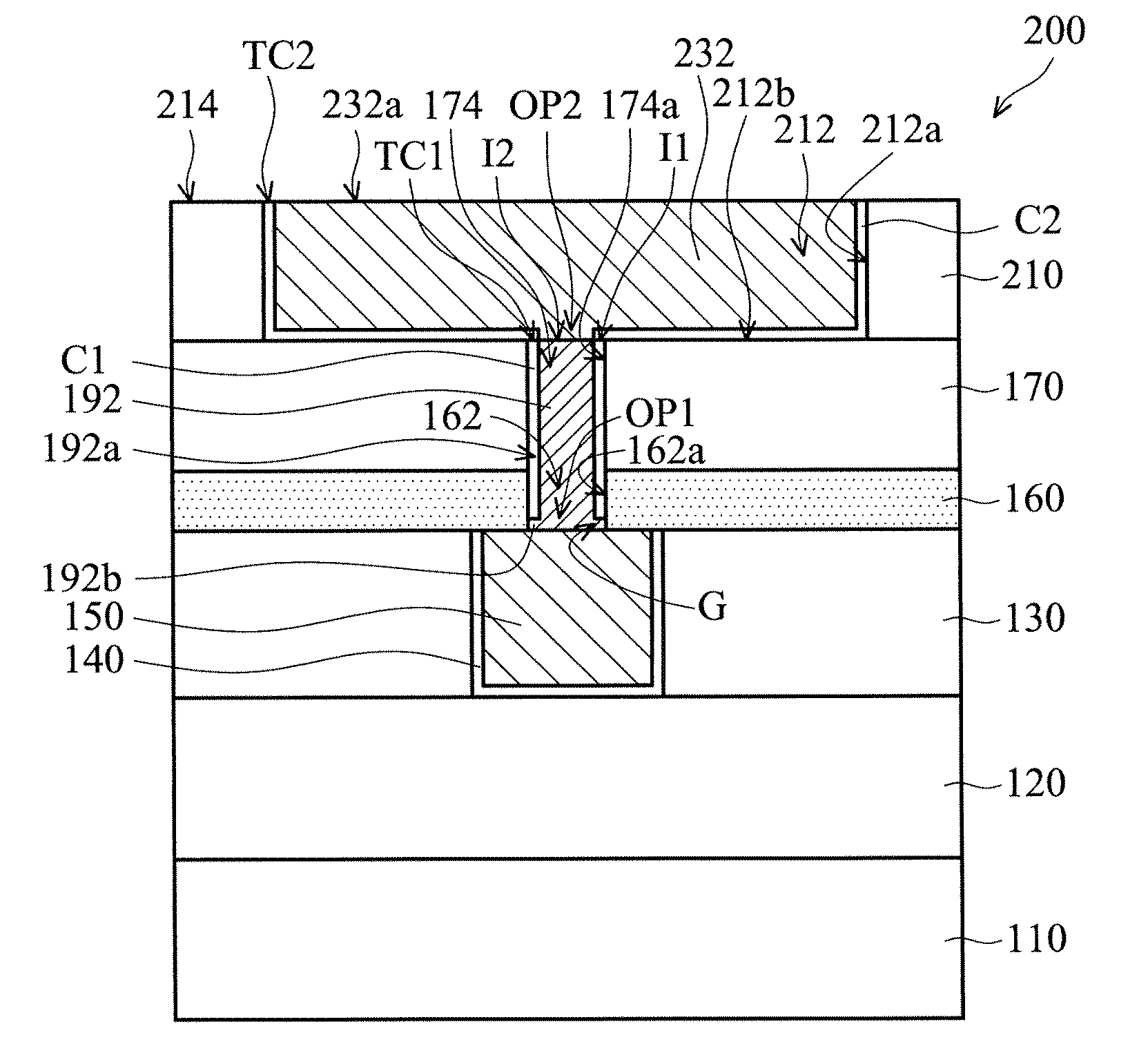

A semiconductor device structure is provided. The semiconductor device structure includes a substrate. The semiconductor device structure includes a first conductive structure over the substrate. The semiconductor device structure includes a first dielectric layer over the substrate and the first conductive structure. The semiconductor device structure includes a second conductive structure over the first conductive structure and extending into the first dielectric layer. The second conductive structure is electrically connected to the first conductive structure. The semiconductor device structure includes a cover layer between the second conductive structure and the first dielectric layer. The cover layer surrounds the second conductive structure, the second conductive structure passes through the cover layer and is partially between the cover layer and the first conductive structure, and the cover layer includes a metal oxide.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- H01L Class
- 30754 Applications Filed
- 25260 Patents Issued To-Date
- 82.14 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01L Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 2, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 2, 2030 |
