Etch damage and ESL free dual damascene metal interconnect
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 4, 2019
Grant Date -
Feb 1, 2018
app pub date -
Oct 6, 2017
filing date -
Jun 19, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

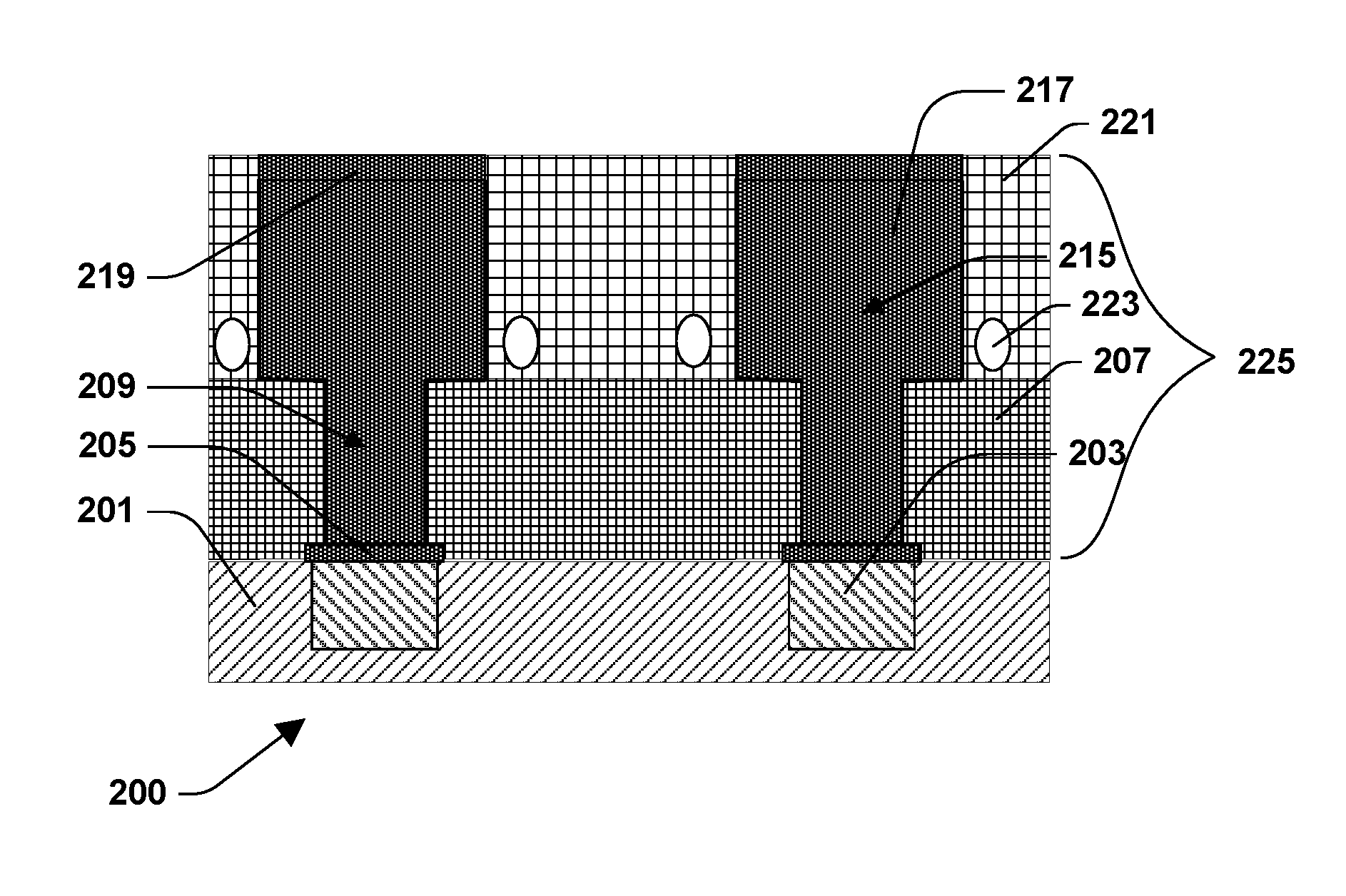

Some embodiments relate to a semiconductor device manufacturing process. In the process, a substrate is provided, and a sacrificial layer is formed over the substrate. An opening is patterned through the sacrificial layer, and the opening is filled with conductive material. The sacrificial layer is removed while the conductive material is left in place. A first dielectric layer is formed along sidewalls of the conductive material that was left in place.
