ELECTRONIC DEVICE AND A PROCESS FOR FORMING THE SAME
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Aug 1, 2016
filing date -
Aug 1, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

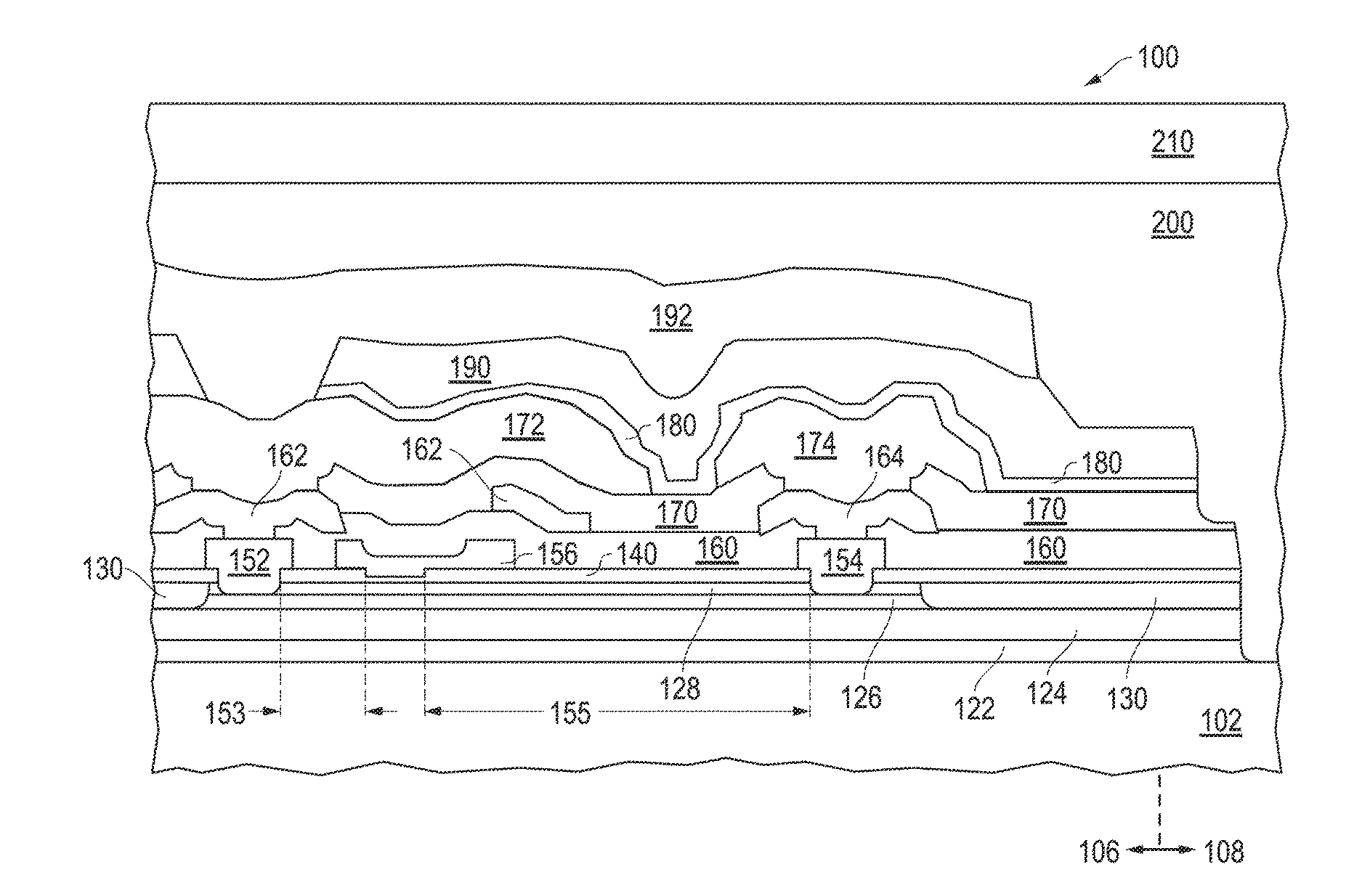

An electronic device can include a semiconductor material and a semiconductor layer overlying the semiconductor material, wherein the semiconductor layer has a greater bandgap energy as compared to the semiconductor material. The electronic device can include a component having a high electrical field region and a low electrical field region. Within the high electrical field region, the semiconductor material is not present. In another embodiment, the component may not be present. In another aspect, a process can include providing a substrate and a semiconductor layer overlying the substrate; removing a first portion of the substrate to define a first trench; forming a first insulating layer within the first trench; removing a second portion of the substrate adjacent to first insulating layer to define second trench; and forming a second insulating layer within the second trench.
