Microelectromechanical device, which can be used as non-volatile memory module or relay, and memory including a plurality of microelectromechanical devices
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 13, 2019
Grant Date -
Feb 1, 2018
app pub date -
Mar 27, 2017
filing date -
Jul 26, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

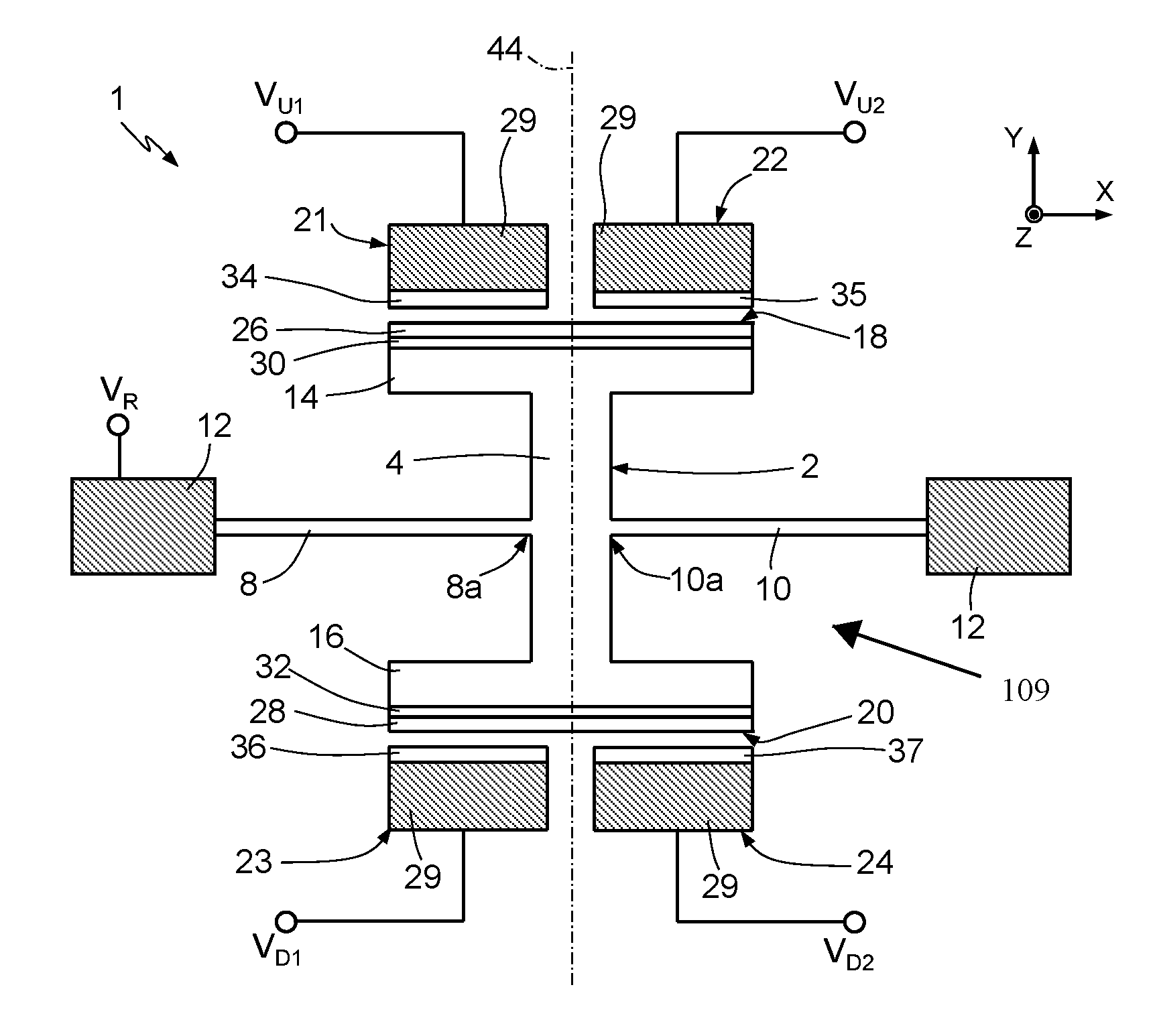

A microelectromechanical device, in particular a non-volatile memory module or a relay, comprising: a mobile body including a top region and a bottom region; top electrodes facing the top region; and bottom electrodes, facing the bottom region. The mobile body is, in a resting condition, at a distance from the electrodes. The latter can be biased for generating a movement of the mobile body for causing a direct contact of the top region with the top electrodes and, in a different operating condition, a direct contact of the bottom region with the bottom electrodes. In the absence of biasing, molecular-attraction forces maintain in stable mutual contact the top region and the top electrodes or, alternatively, the bottom region and the bottom electrodes.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- B81B Class
- 567 Applications Filed
- 395 Patents Issued To-Date
- 69.67 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B81B Class
- 33.33 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 13, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 13, 2031 |
