Multiple register memory access instructions, processors, methods, and systems
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 16, 2018
Grant Date -
Feb 1, 2018
app pub date -
Oct 9, 2017
filing date -
Jun 28, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

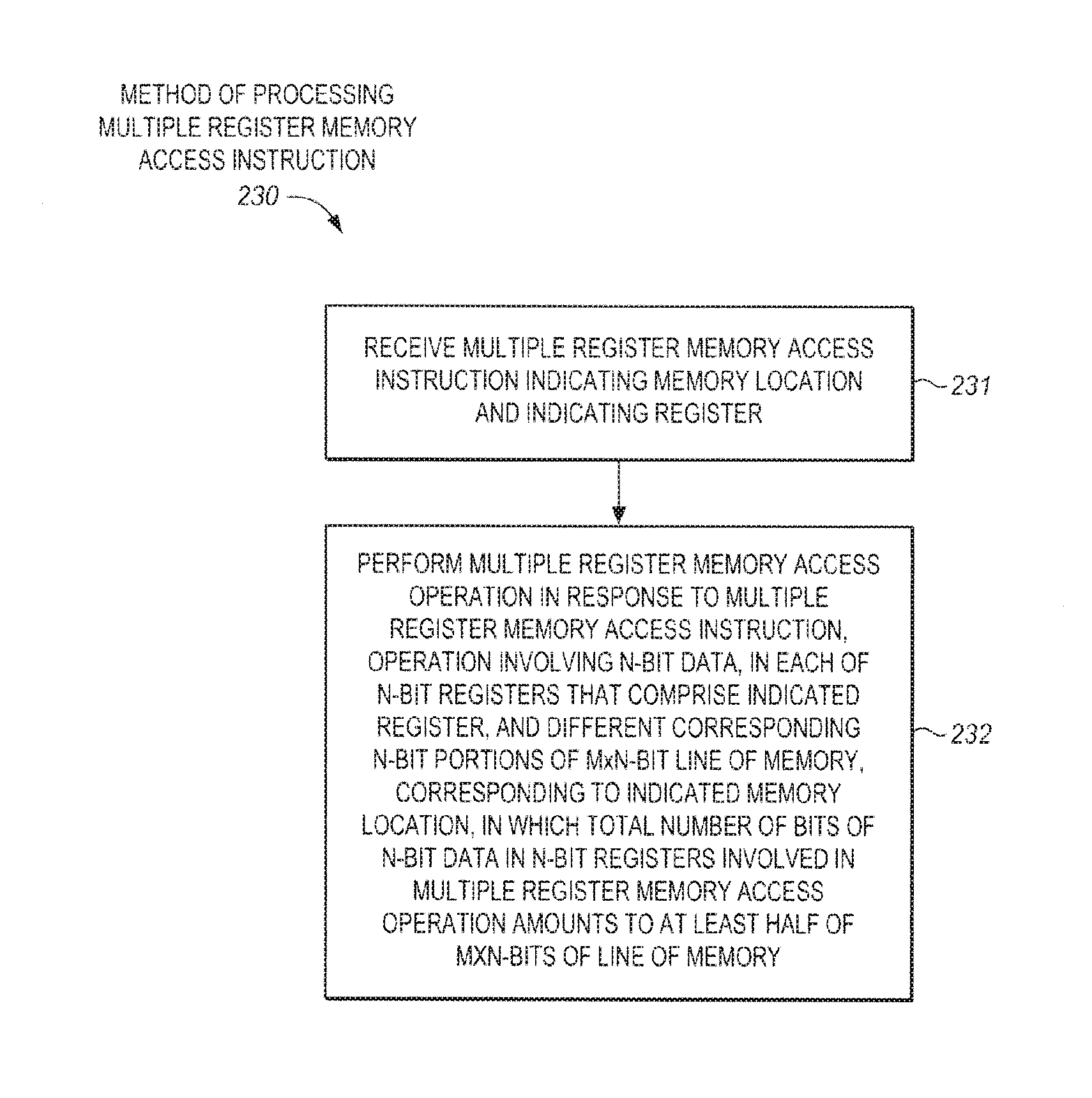

A processor includes N-bit registers and a decode unit to receive a multiple register memory access instruction. The multiple register memory access instruction is to indicate a memory location and a register. The processor includes a memory access unit coupled with the decode unit and with the N-bit registers. The memory access unit is to perform a multiple register memory access operation in response to the multiple register memory access instruction. The operation is to involve N-bit data, in each of the N-bit registers comprising the indicated register. The operation is also to involve different corresponding N-bit portions of an M×N-bit line of memory corresponding to the indicated memory location. A total number of bits of the N-bit data in the N-bit registers to be involved in the multiple register memory access operation is to amount to at least half of the M×N-bits of the line of memory.
