Method of driving a display panel capable of compensating for a difference in charging rates between pixels, and a display apparatus for performing the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 16, 2019
Grant Date -
Feb 1, 2018
app pub date -
Jul 24, 2017
filing date -
Jul 29, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

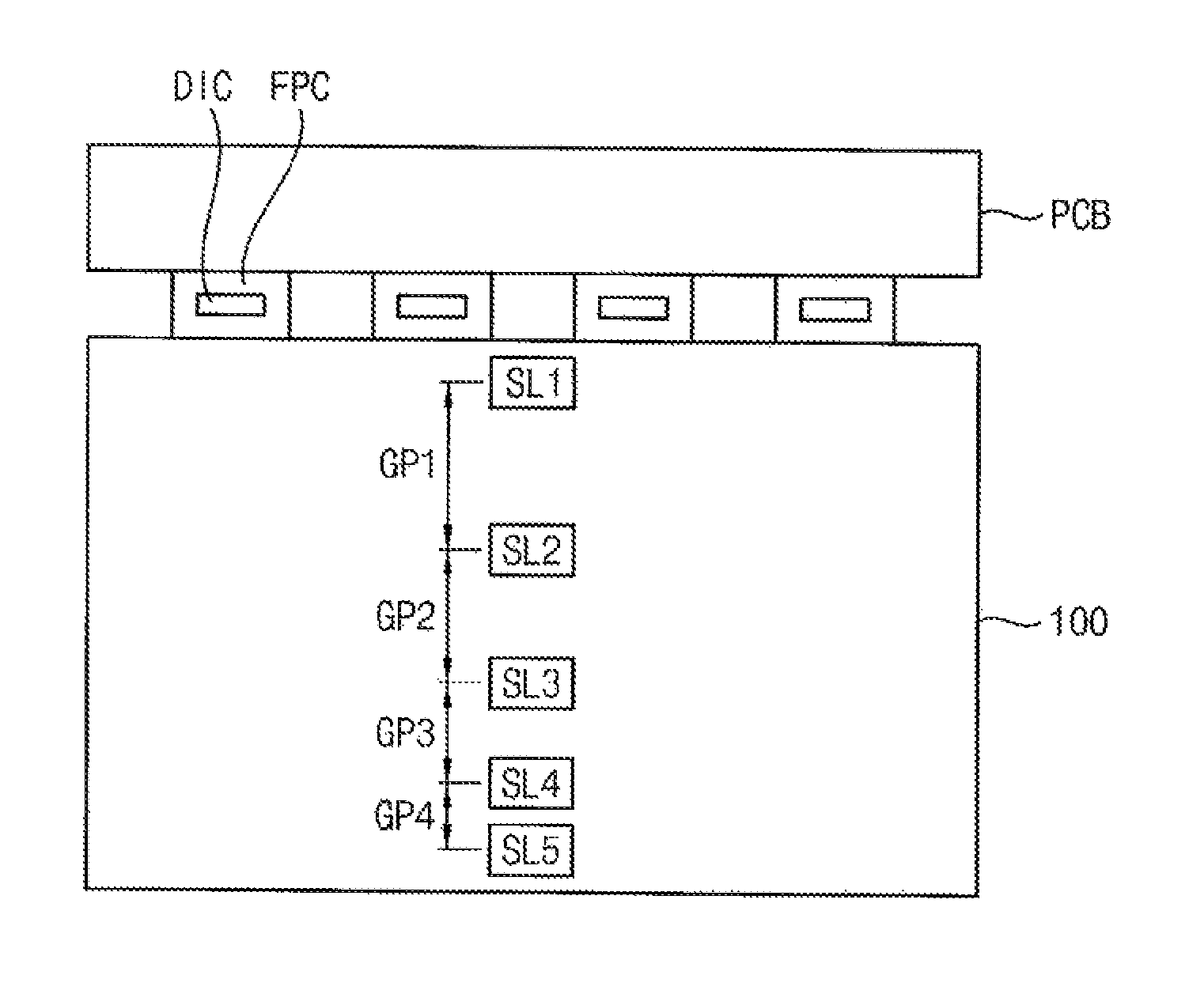

A method of driving a display panel includes outputting a gate signal to the display panel, varying a slew rate of a data voltage to be output to the display panel according to a position in the display panel at which the data voltage is to be applied, outputting the data voltage having the varied slew rate to the display panel, and displaying a grayscale on the display panel in response to the gate signal and the data voltage having the varied slew rate.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2017 Application Filing Year
- G09G Class
- 5283 Applications Filed
- 4171 Patents Issued To-Date
- 78.96 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- G09G Class
- 32.96 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 16, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 16, 2031 |
