Device and method of multi-dimensional frequency domain extrapolation of sensor data
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 6, 2018
Grant Date -
Feb 1, 2018
app pub date -
Jul 28, 2016
filing date -
Jul 28, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

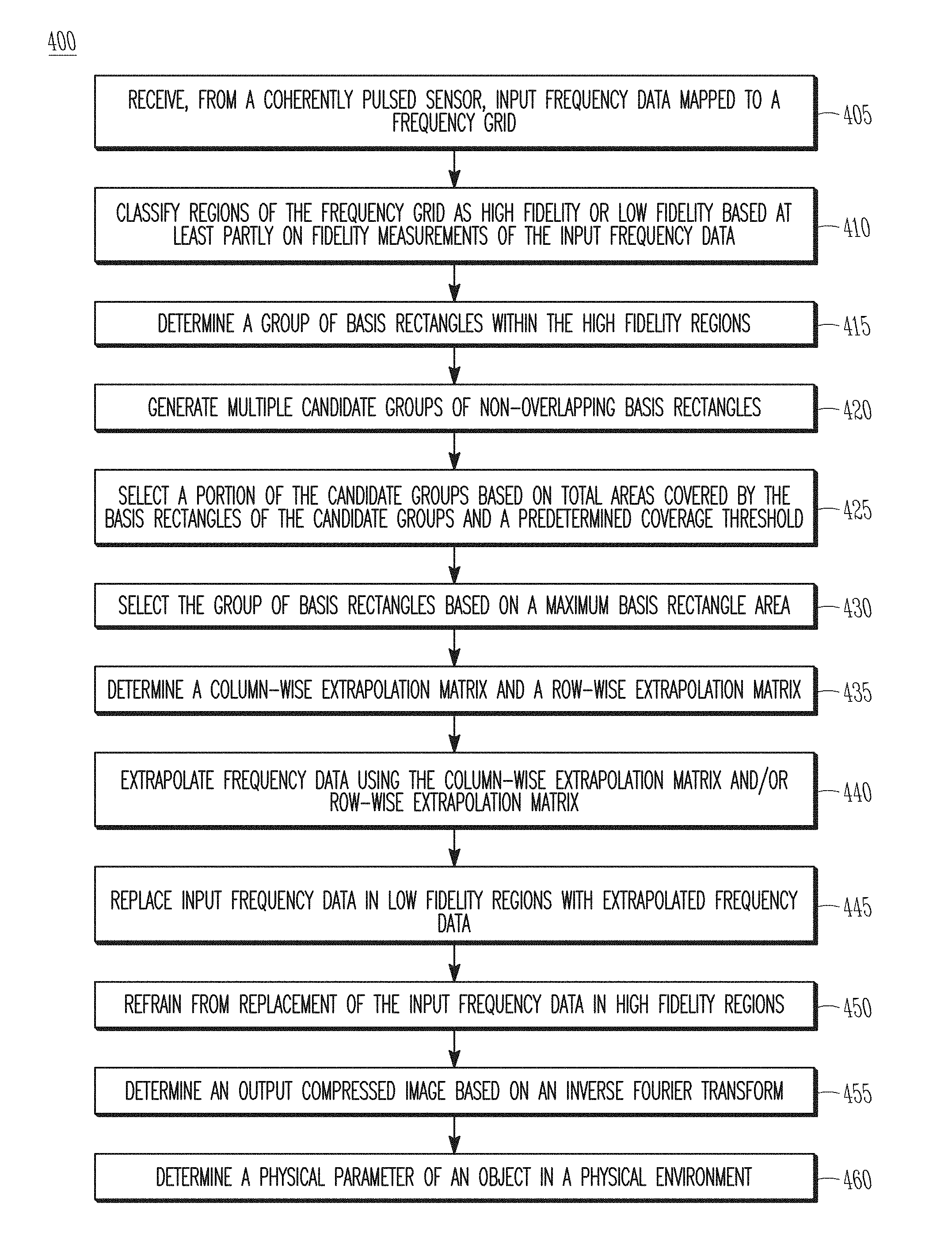

Embodiments of a device and a frequency data extrapolator are generally described herein. The frequency data extrapolator may receive input frequency data mapped to a two-dimensional frequency grid. As an example, the input frequency data may be based on return signals received, at a sensor of the device, in response to pulsed transmissions of the sensor in a physical environment. Regions of the frequency grid may be classified as high fidelity or low fidelity. A group of basis rectangles may be determined within the high fidelity regions. A column-wise extrapolation matrix and a row-wise extrapolation matrix may be determined based on the input frequency data of the basis rectangles. The input frequency data of the high fidelity regions may be extrapolated to replace the input frequency data of the low fidelity regions.
