Method for setting fingerprint sensor interrupt threshold, apparatus, and terminal device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 19, 2019
Grant Date -
Feb 1, 2018
app pub date -
Apr 21, 2015
filing date -
Apr 21, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

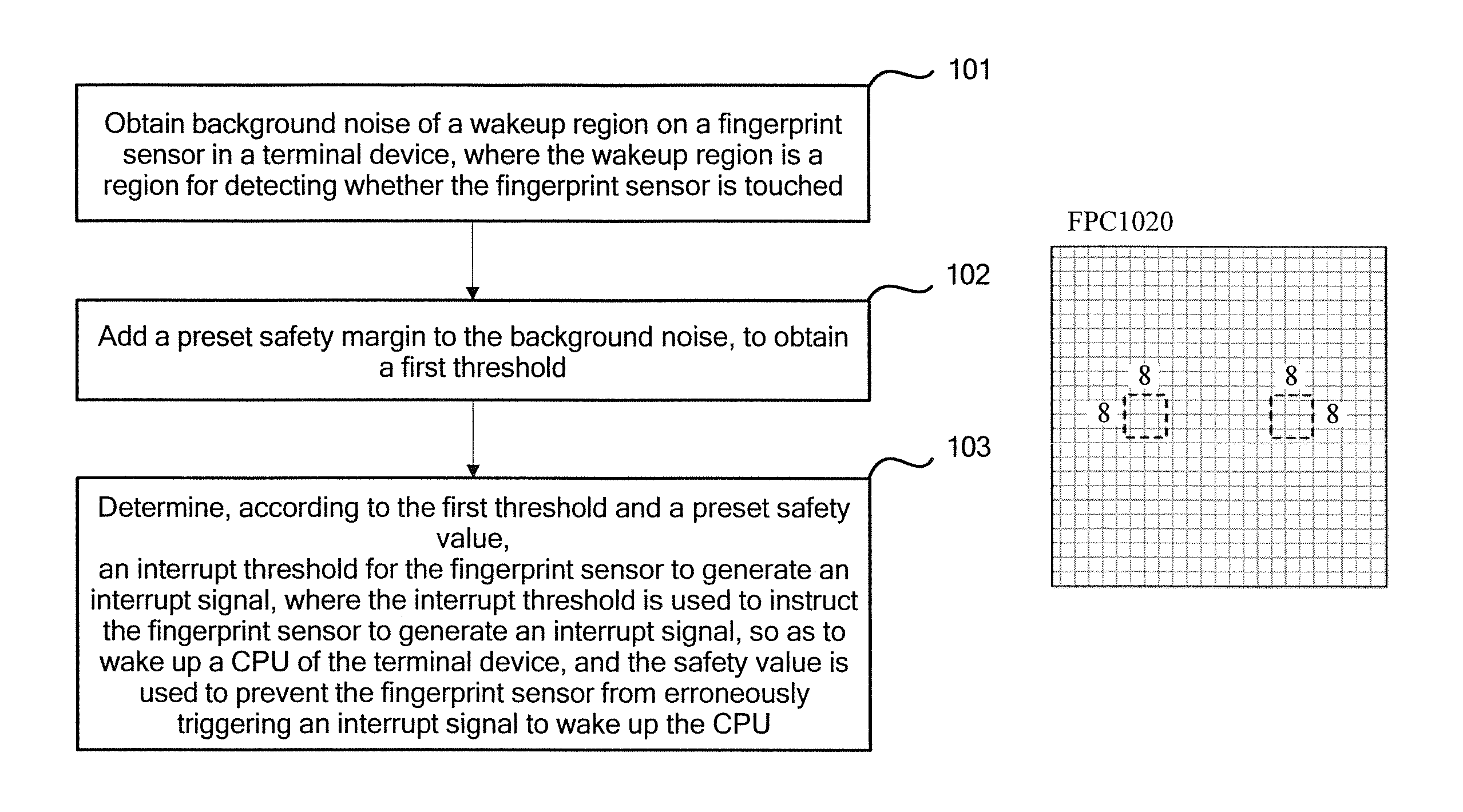

The present invention provides a method: obtaining background noise of a wakeup region on a fingerprint sensor in a terminal device, where the wakeup region is a region for detecting whether the fingerprint sensor is touched; adding a preset safety margin to the background noise, to obtain a first threshold; and determining, according to the first threshold and a preset safety value, an interrupt threshold for the fingerprint sensor to generate an interrupt signal, where the interrupt threshold is used to instruct the fingerprint sensor to generate an interrupt signal, so as to wake up a central processing unit CPU of the terminal device, and the safety value is used to prevent the fingerprint sensor from erroneously triggering an interrupt signal to wake up the CPU.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- G06F Class
- 57200 Applications Filed
- 45873 Patents Issued To-Date
- 80.20 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G06F Class
- 0 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 19, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 19, 2030 |
