System architecture for supporting active pass-through board for multi-mode NMVE over fabrics devices
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 20, 2019
Grant Date -
Feb 1, 2018
app pub date -
Mar 15, 2017
filing date -
Jul 26, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

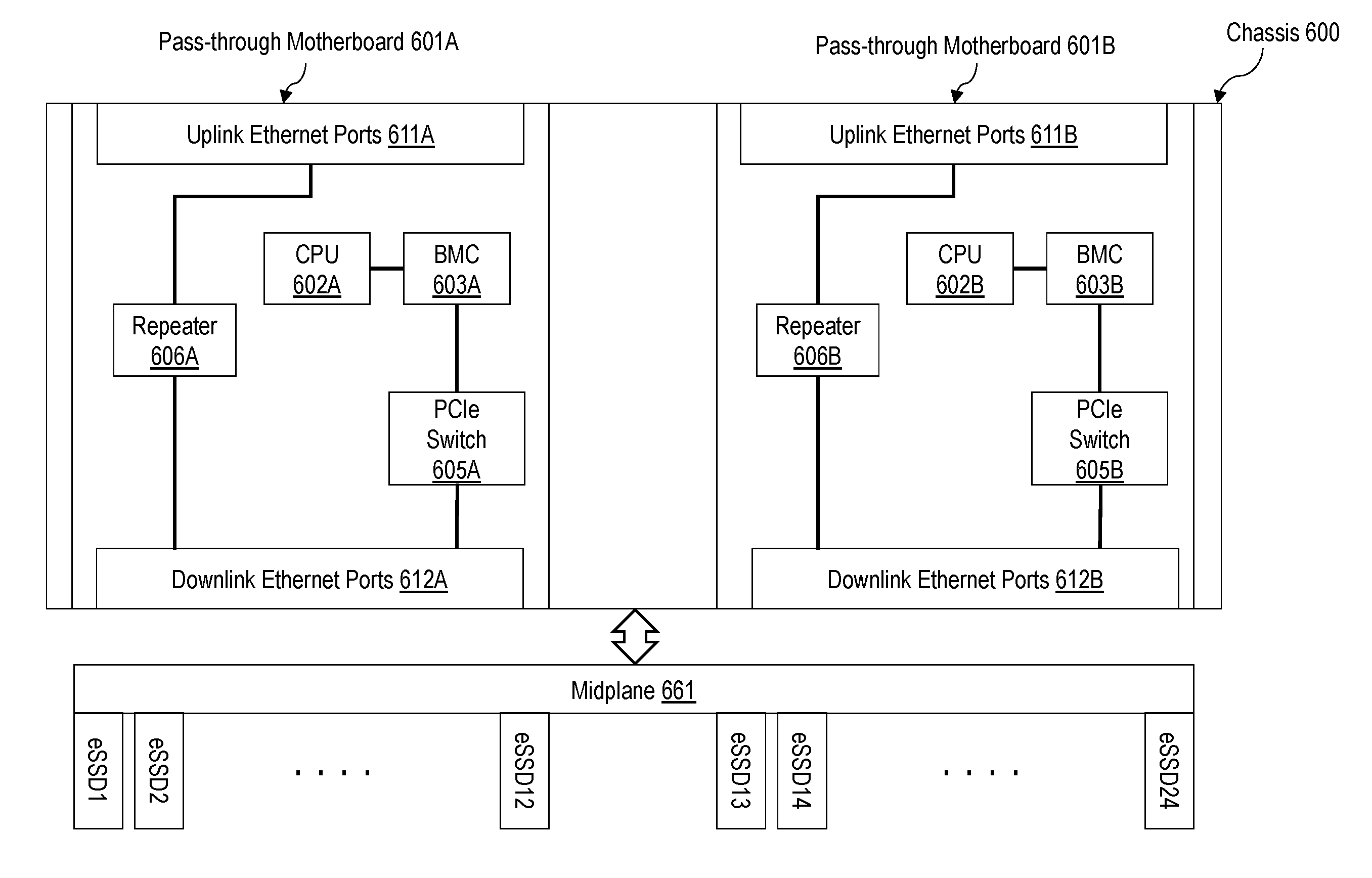

A rack-mounted system includes a chassis, a switchless board disposed in the chassis, a midplane, and a plurality of device ports. The switchless board includes a baseboard management controller (BMC), a network repeater configured to transport network signals, and a PCIe switch configured to transport PCIe signals. Each of the plurality of device ports is configured to connect a storage device to the midplane and carry the network signals and the PCIe signals over the midplane. The storage device is configurable to operate in one of multiple storage protocol modes based on a type of the chassis. The network repeater of the switchless board is swappable with an Ethernet switch to provide a switching compatibility to the chassis using the same midplane. The storage device can operate in single-port and dual-port configurations.
