Erasure correcting coding using temporary erasure data
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 26, 2019
Grant Date -
Feb 1, 2018
app pub date -
Oct 12, 2017
filing date -
Mar 4, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

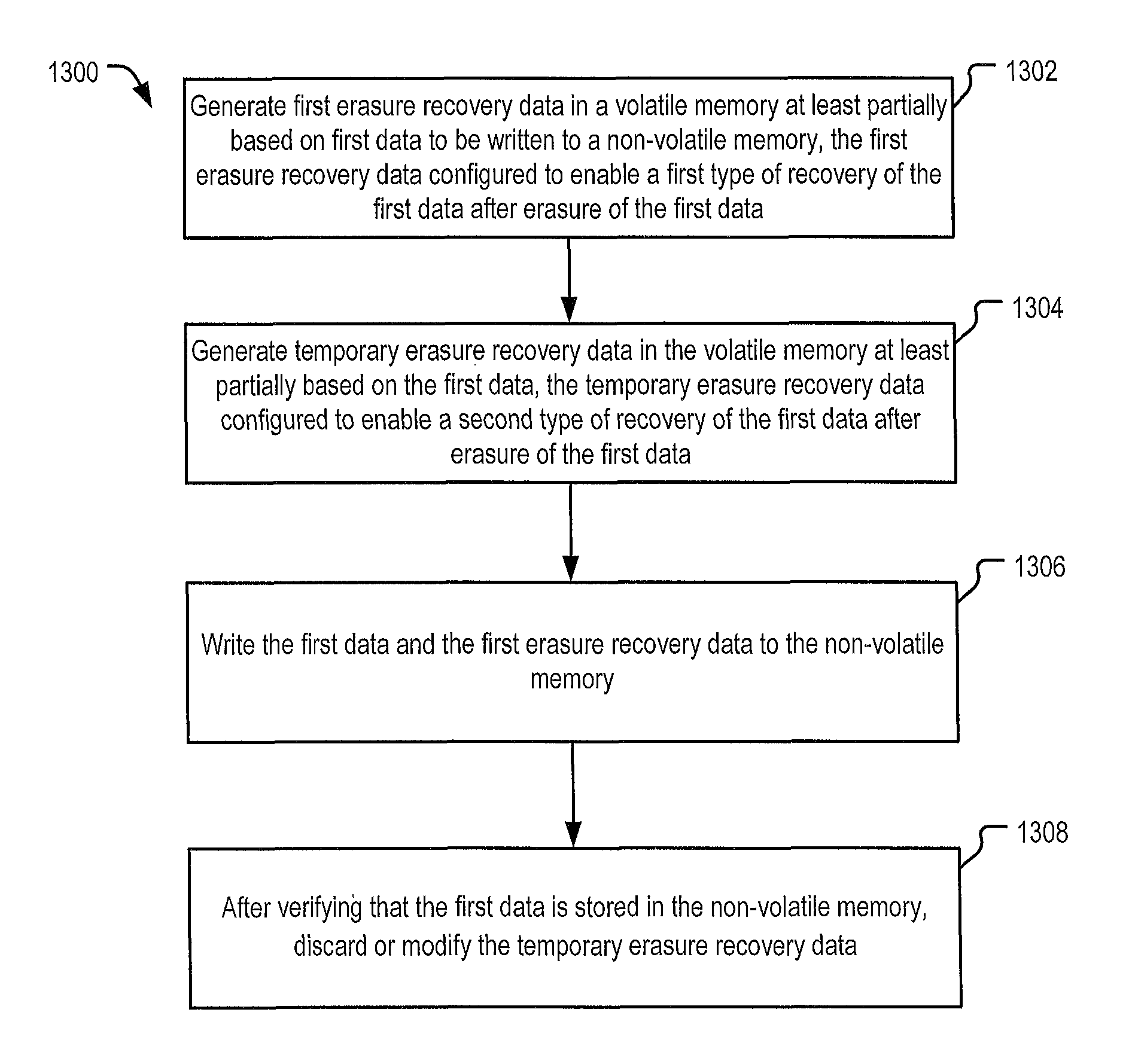

In an illustrative example, a data storage device includes a non-volatile memory and a controller coupled to the non-volatile memory. The controller includes an erasure correcting code engine configured to generate first erasure recovery data and temporary erasure recovery data in a volatile memory at least partially based on first data to be written to the non-volatile memory. The first erasure recovery data is configured to enable a first type of data recovery of the first data, and the temporary erasure recovery data is configured to enable a second type of data recovery of the first data. The controller is further configured to store the first erasure recovery data and the temporary erasure recovery data in the volatile memory and, after verifying that the first data is stored in the non-volatile memory, to discard or modify the temporary erasure recovery data.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2017 Application Filing Year
- H04L Class
- 36365 Applications Filed
- 27259 Patents Issued To-Date
- 74.96 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 11 Citation Count
- H04L Class
- 88.82 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 26, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 26, 2030 |
