TOUCH PANEL AND MANUFACTURING METHOD THEREOF, DISPLAY APPARATUS HAVING THE SAME
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jul 27, 2017
filing date -
Jul 29, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

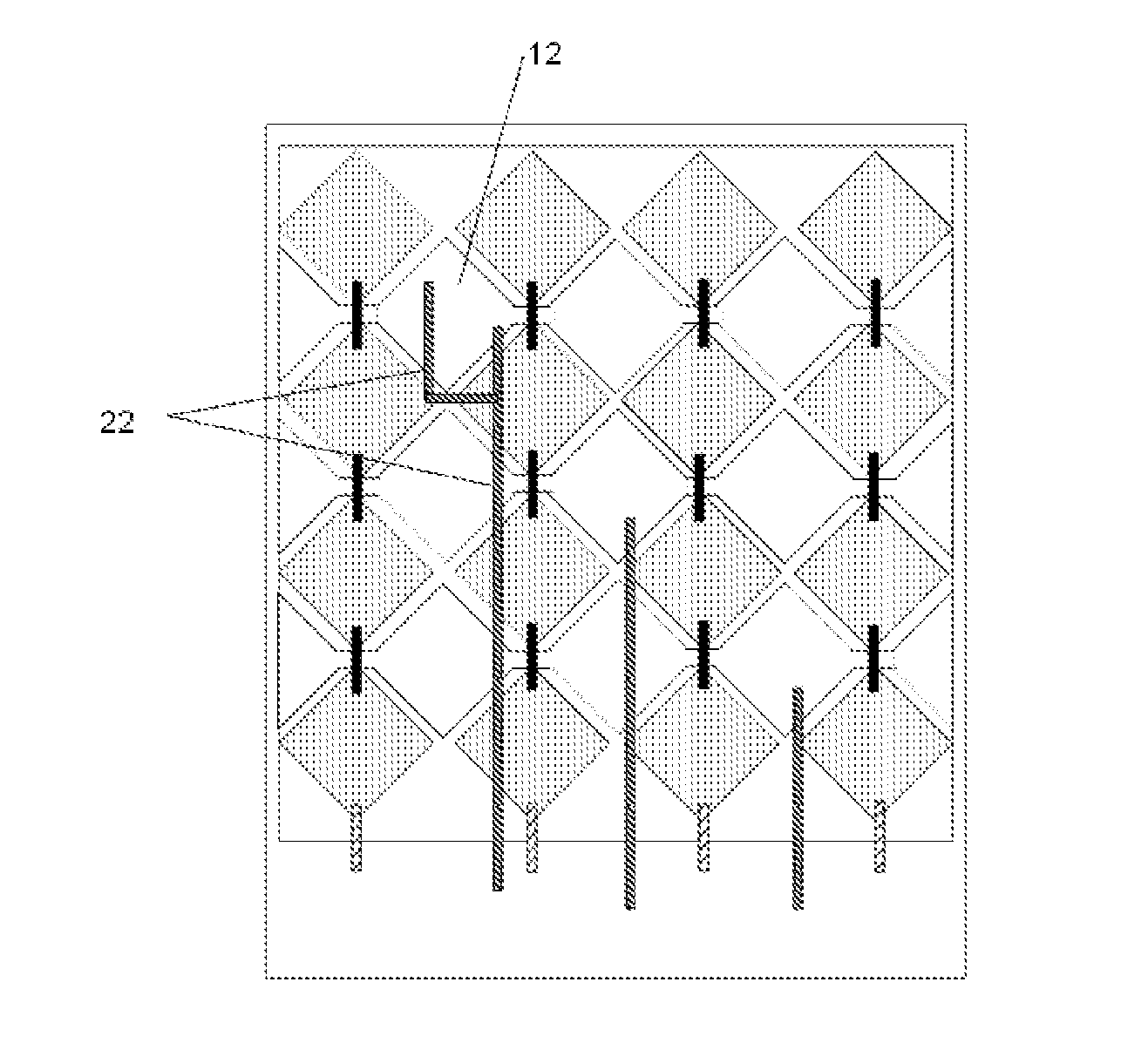

The present disclosure provides a touch panel, a manufacturing method thereof, and a display apparatus having the same. The touch panel includes a touch area and a bonding area arranged at a side of the touch area. The touch area includes a plurality of touch sensing electrode blocks. The bonding area is provided therein with a touch chip. Each of the touch sensing electrode blocks is electrically connected with at least one lead configured to provide signal to the touch sensing electrode block. The lead is configured to pass through the touch area and extend out from a side of the touch area close to the bonding area, thereby connecting with the touch chip provided in the bonding area.
First Claim
Other Claims data not available
