Developing apparatus having a projecting regulating member and process cartridge
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 18, 2018
Grant Date -
Feb 1, 2018
app pub date -
Jul 25, 2017
filing date -
Jul 29, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

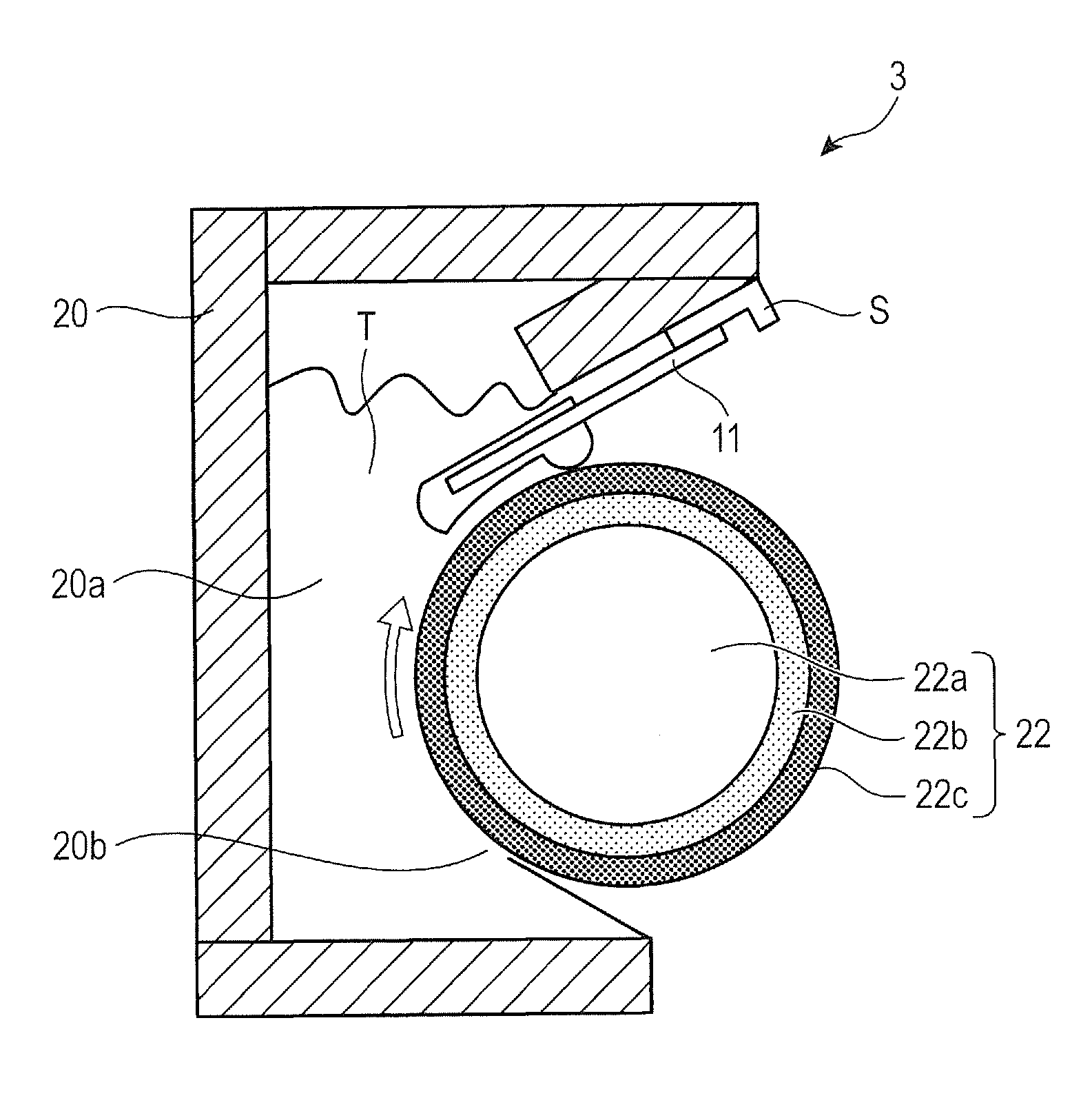

A developing apparatus includes a developer carrying member, a developing frame member to rotatably supporting the developer carrying member, and a regulating member provided on the developing frame member and regulating developer carried on the developer carrying member. The regulating member includes a projecting part projected towards the developer carrying member and having an abutting part that abuts the developer carrying member, and an opposing surface facing the developer carrying member. The opposing surface is positioned on an upstream side of the projecting part and arranged to connect the projecting part with a distal end of the regulating member at a free end side of the regulating member. In addition, the opposing surface is a surface having no point of reverse curve, and the distance between the opposing surface and the developer carrying member is constant or decreasing with distance from the projecting part.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- G03G Class
- 2629 Applications Filed
- 2246 Patents Issued To-Date
- 85.44 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- G03G Class
- 23.29 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 18, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 18, 2030 |
